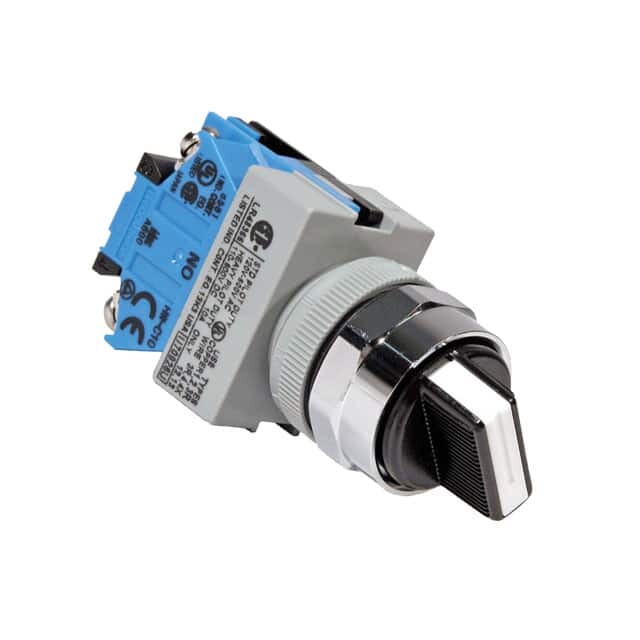

ASW211
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Selector Switches
Description
22MM SELECTOR SWITCH
PDF
/
Buying Options
Total Price: USD $27.49
Unit Price: USD $27.4912
≥1 USD $27.4912
≥10 USD $22.06776
≥100 USD $17.80944
Inventory: 84
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP65
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Technical
Depth Behind Flange 48.50mm
Index Angle 90 °
Illumination Type Illuminated
Contact Current Rating 10A
Mechanical Life 500,000 Cycles
Max Voltage Rating (DC) 220V
Illumination Non-Illuminated
Throw Configuration DPST
Max Voltage Rating (AC) 440V
Panel Cutout Dimensions Circular - 22.30mm Dia
Switch Function On-Off, Off-On
Circuit DPST-NO/NC
Approval Agency CCC, CE, CSA, TUV, UL
Voltage - Rated AC 110V
Termination Style Screw Terminal
Ingress Protection IP65 - Dust Tight, Oil and Water Resistant
Orientation Straight
Current Rating (Amps) 10A AC 8A DC
Voltage - Rated DC 24V
Number of Positions 2
Type Standard
Termination Screw
Number of Terminations 4
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series TW
Published 2005
Operating Temperature -25°C~50°C
Physical
Mounting Type Panel Mount
Mount Panel
Contact Material Silver
Supply Chain
Factory Lead Time 4 Weeks
