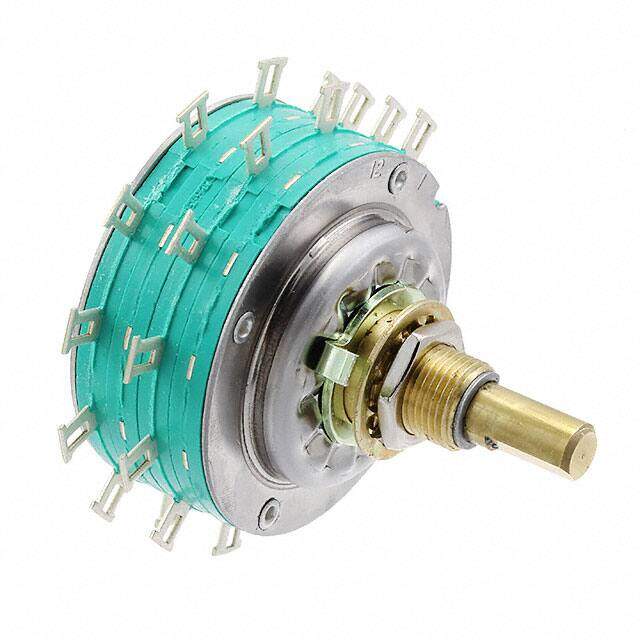

C7D0212S-30
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Rotary Switches
Description
SWITCH ROTARY 12POS 500MA 125V
PDF
/
Buying Options
Total Price: USD $153.82
Unit Price: USD $153.820677
≥1 USD $153.820677
≥200 USD $61.375449
≥500 USD $59.324699
≥1000 USD $58.311141
Inventory: 1799
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Brass
Mount Panel
Mounting Type Panel Mount
Technical
Series C7
Part Status Active
Termination Solder
Number of Positions 12
Voltage - Rated DC 28V
Current Rating (Amps) 500mA AC 1A DC
Orientation Vertical
Contact Finish Silver
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Flatted (6.35mm Dia)
Panel Cutout Dimensions Circular - 9.78mm Dia
Number of Decks 2
Contact Timing Shorting (MBB)
Index Stops Fixed
Circuit per Deck SP12T
Depth Behind Panel 32.49mm
Index Angle 30 °
Number of Poles per Deck 1
Angle of Throw 30°
Dimensions
Actuator Length 14.29mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
