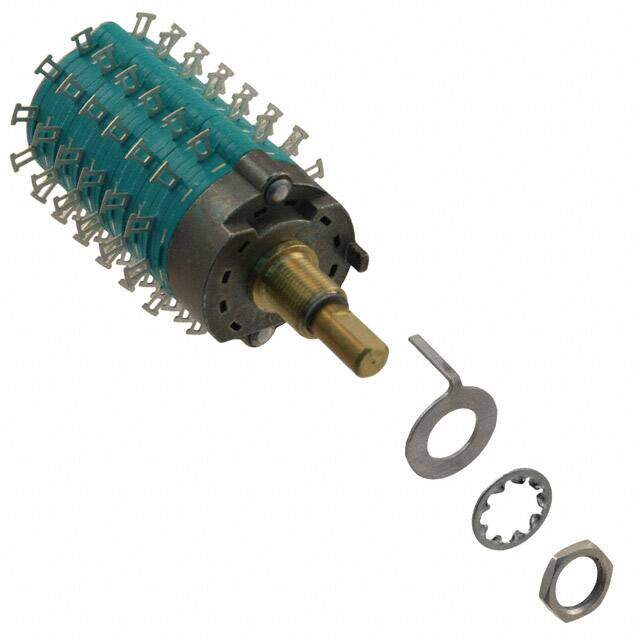

C4D0612N-A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Rotary Switches
Description
SWITCH ROTARY 2-12POS 300MA 125V
PDF
/
Buying Options
Total Price: USD $60.28
Unit Price: USD $60.28
≥1 USD $60.28
Inventory: 97
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Actuator Length 12.70mm
Technical
Bushing Type 3/8-32
Bushing Length 0.375 inch
Number of Poles per Deck 1
Index Angle 30 °
Depth Behind Panel 56.18mm
Circuit per Deck SP12T
Index Stops Adjustable
Contact Timing Non-Shorting (BBM)
Contact Current(AC)-Max 0.3A
Number of Decks 6
Switch Type ROTARY SWITCH
Electrical Life 25000 Cycle(s)
Contact Current(DC)-Max 0.5A
Contact Resistance 0.003mOhm
Contact Style Non-Shorting
Panel Cutout Dimensions Circular - 9.78mm Dia
Actuator Type Flatted (6.35mm Dia)
Voltage - Rated AC 125V
Termination Style Solder Lug
Contact Finish Silver
Current Rating 500mA
Reach Compliance Code unknown
Depth 56.1848mm
Orientation Vertical
Current Rating (Amps) 300mA AC 500mA DC
Voltage - Rated DC 28V
Number of Positions 2 ~ 12
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Series C4
Published 2006
Physical
Number of Pins 12
Mounting Type Panel Mount
Mount Panel
Contact Material Brass
Supply Chain
Factory Lead Time 6 Weeks
