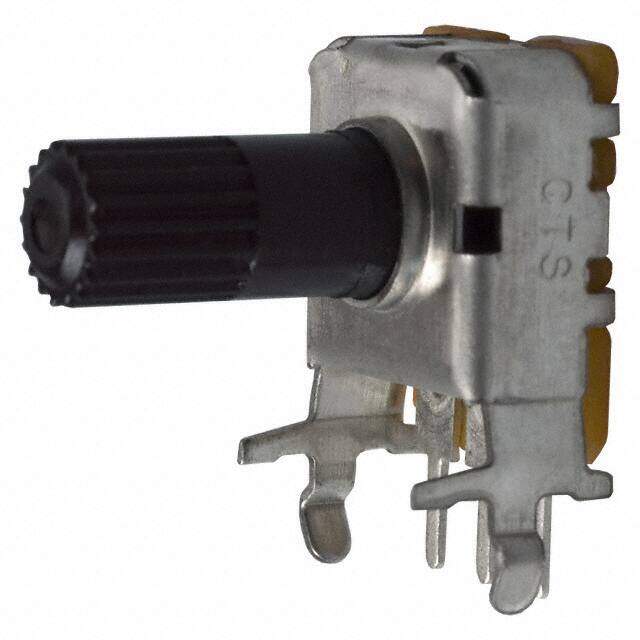

296XD501B1N
RoHS
RoHS compliant
RoHS compliantPackage /
Category Potentiometers, Variable Resistors / Rotary Potentiometers, Rheostats
Description
POT 500 OHM 0.15W CARBON LINEAR
PDF
/
Buying Options
Total Price: USD $1.66
Unit Price: USD $1.65688
≥1 USD $1.65688
≥200 USD $0.661702
≥500 USD $0.639382
≥1000 USD $0.628879
Inventory: 1223
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mounting Type Through Hole, Snap In
Resistive Material Carbon
Technical
Packaging Bulk
Published 1999
Series 296
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Resistance 500Ohm
Power (Watts) 0.15W
Termination Style PC Pins, Board Locks
Actuator Type Knurled
Adjustment Type Side Adjustment
Number of Turns 1
Taper Linear
Built in Switch None
Actuator Diameter 0.236 (6.00mm)
Rotation 300°
Size - Body Rectangular - 0.646 x 0.492 Face x 0.646 H 16.40mmx12.50mmx16.40mm
Dimensions
Actuator Length 0.539 13.70mm
Compliance
RoHS Status RoHS Compliant
