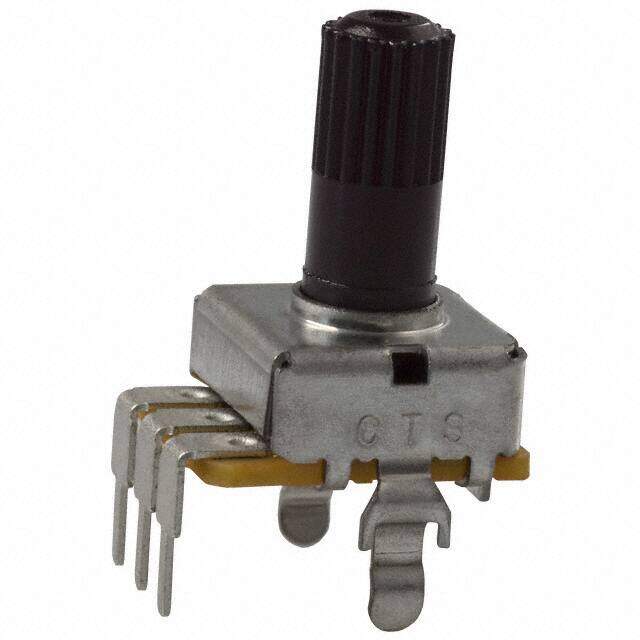

296UD501B1N image
Favorite
296UD501B1N image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Potentiometers, Variable Resistors / Rotary Potentiometers, Rheostats
Description POT 500 OHM 0.15W CARBON LINEAR
PDF
/
Inventory: 4213
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Actuator Length 0.539 13.70mm

Technical

Size - Body Square - 0.504 x 0.492 Face x 0.343 H 12.80mmx12.50mmx8.70mm
Rotation 300°
Actuator Diameter 0.236 (6.00mm)
Built in Switch None
Taper Linear
Number of Turns 1
Adjustment Type Top Adjustment
Actuator Type Knurled
Termination Style PC Pins, Board Locks
Power (Watts) 0.15W
Resistance 500Ohm
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Tolerance ±20%
Series 296
Published 1999
Packaging Bulk

Physical

Resistive Material Carbon
Mounting Type Through Hole, Snap In

Supply Chain

Factory Lead Time 7 Weeks
