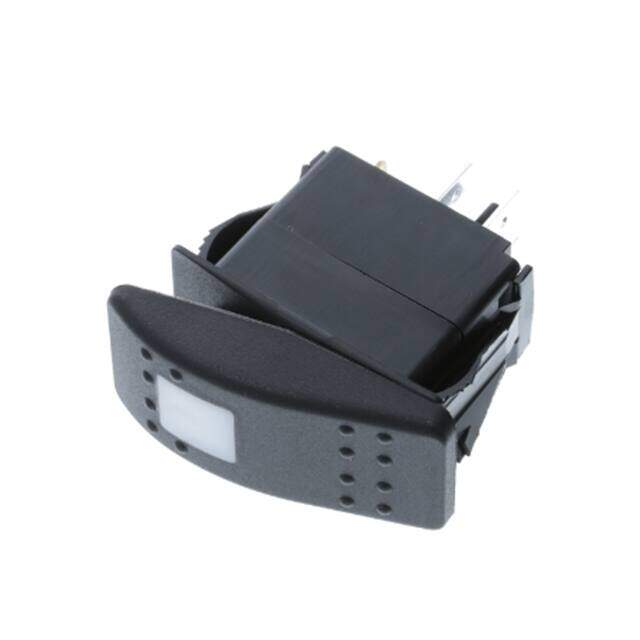

SRD1-2A-DC-1-BRN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Rocker Switches
Description
DPST OFF-ON RED LED- IP67
PDF
/
Buying Options
Total Price: USD $11.73
Unit Price: USD $11.734881
≥1 USD $11.734881
≥10 USD $11.070638
≥100 USD $10.444001
≥500 USD $9.852829
≥1000 USD $9.29512
Inventory: 1221
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Actuator Marking No Marking
Mechanical Life 10,000 Cycles
Electrical Life 6,000 Cycles
Illumination Type, Color LED, Red
Illumination Voltage (Nominal) 14VDC
Color - Actuator/Cap Black
Panel Cutout Dimensions Rectangular - 36.80mm x 21.20mm
Switch Function On-Off
Circuit DPST
Actuator Type Convex (Reverse V) - Illuminated
Termination Style Quick Connect - 0.250 (6.3mm)
Ingress Protection IP56 - Dust Protected, Water Resistant
Current Rating (Amps) 21A DC
Voltage - Rated DC 14V
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series SRD1
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Mounting Type Panel Mount, Snap-In
