RD1-1A-DC-1-UL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Rocker Switches
Description

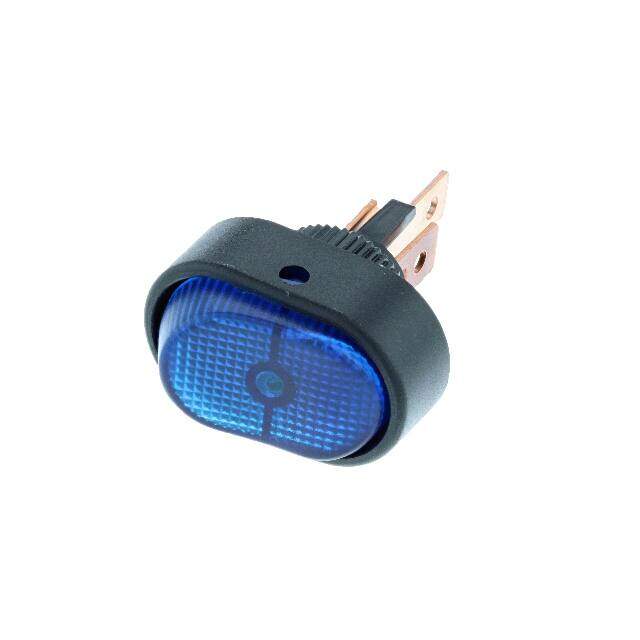

OVAL-SHAPED SPST OFF-ON BULB
PDF
/
Buying Options
Total Price: USD $2.42
Unit Price: USD $2.42
≥1 USD $2.42
≥10 USD $2.29944
≥100 USD $2.24576
≥500 USD $2.19648
≥1000 USD $2.07064
≥3000 USD $1.90344
Inventory: 223
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Actuator Marking No Marking
Mechanical Life 10,000 Cycles
Electrical Life 6,000 Cycles
Illumination Type, Color LED, Blue
Illumination Voltage (Nominal) 12VDC
Color - Actuator/Cap Blue
Panel Cutout Dimensions Circular - 12.20mm Dia
Switch Function On-Off
Circuit SPST
Actuator Type Concave (Curved) - Illuminated
Termination Style Quick Connect - 0.250 (6.3mm)
Current Rating (Amps) 30A DC
Voltage - Rated DC 12V
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series RD1
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Mounting Type Panel Mount, Threaded Body with Nut
