RR1113QQ11
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Rocker Switches
Description

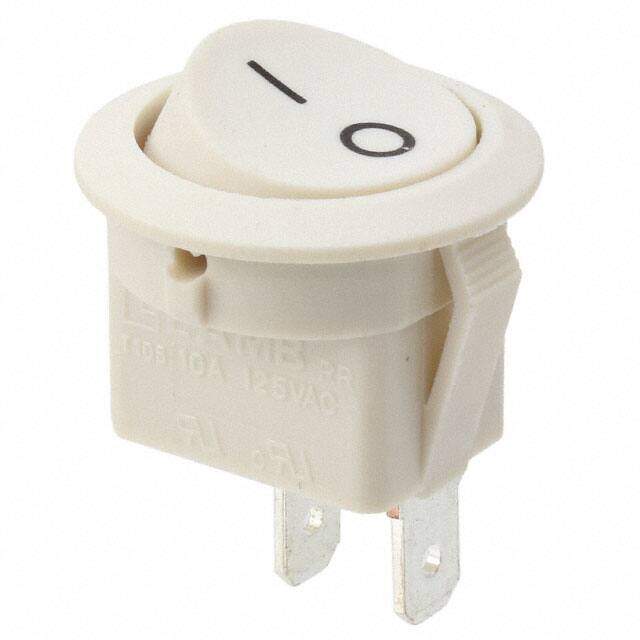

RR1113QQ11 Series 10 A SPST Off-On Quick Connect Panel Mount Rocker Switch
PDF
/
Buying Options
Total Price: USD $1.31
Unit Price: USD $1.311587
≥1 USD $1.311587
≥200 USD $0.523847
≥500 USD $0.506779
≥1000 USD $0.497589
Inventory: 1200
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.217 inch
Length - Termination 0.315 inch
Body Height 14.605mm
Technical
Contact Function OFF-ON
Actuator Marking O -
Contact (AC) Max Rating R Load 10A@125VAC
Contact Current Rating 10A
Switch Type ROCKER SWITCH
Electrical Life 10,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Color - Actuator/Cap Bisque
Insulation Resistance 100000000Ohm
Contact Resistance 0.035mOhm
Panel Cutout Dimensions Circular - 20.00mm Dia
Switch Function On-Off
Circuit SPST
Actuator Type Round
Body Breadth 12.3952 mm
Body Length or Diameter 17.1958mm
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.187 (4.7mm)
Current Rating 10A
Current Rating (Amps) 10A AC
HTS Code 8536.50.90.65
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Series RR1, LAMB
Published 2012
Packaging Bulk
Operating Temperature -20°C~105°C
Physical
Terminal Material COPPER
Insulation Material POLYAMIDE
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Material Silver
Supply Chain
Factory Lead Time 9 Weeks
