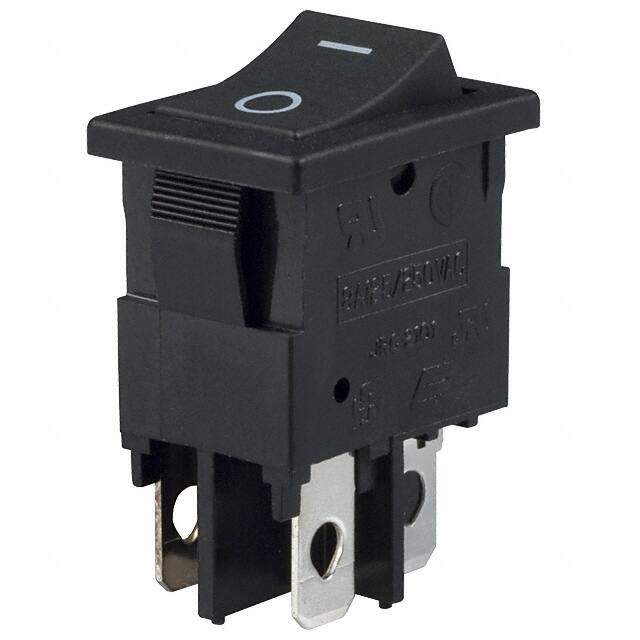

RC1083BBLKBLKGF0
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Switches / Rocker Switches
Description
SWITCH ROCKER DPST 8A 125V
PDF
/
Inventory: 8914
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Silver
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Package / Case 125
Actuator Material Nylon
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2008
Series RC1083
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Color Black
Current Rating (Amps) 8A AC
Orientation Straight
Current Rating 8A
Termination Style Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC 125V
Actuator Type Concave (Curved)
Housing Color Black
Circuit DPST
Switch Function On-Off
Panel Cutout Dimensions Rectangular - 19.30mm x 13.00mm
Contact Resistance 10mOhm
Color - Actuator/Cap Black
Max Voltage Rating (AC) 250V
Electrical Life 10,000 Cycles
Throw Configuration DPST
Mechanical Life 15,000 Cycles
Contact Current Rating 12A
Actuator Marking O I
Dimensions
Height 14mm
Length 18.6mm
Width 15mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
