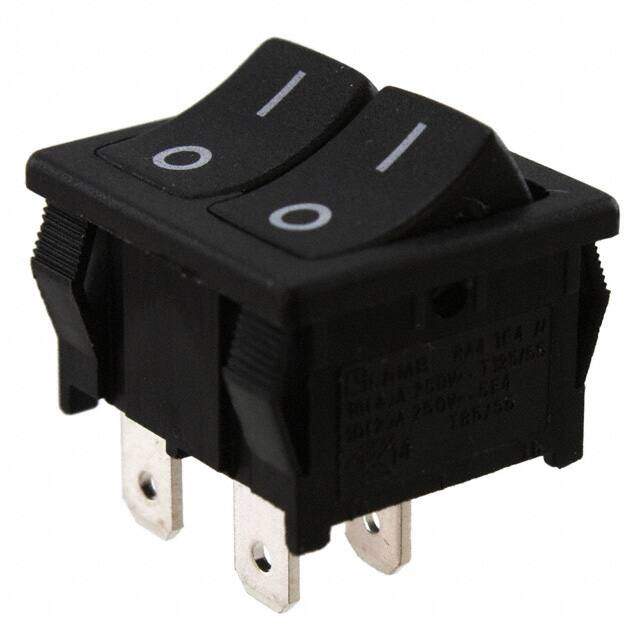

RA21131121
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Rocker Switches
Description
SWITCH ROCKER SPSTX2 10A 125V
PDF
/
Buying Options
Total Price: USD $1.21
Unit Price: USD $1.2144
≥1 USD $1.2144
≥10 USD $1.08856
≥100 USD $0.93456
≥500 USD $0.794851
Inventory: 1145
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP54, Water Resistant
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.248 inch
Length - Termination 0.204 inch
Body Height 13.208mm
Technical
Contact Function OFF-ON
Actuator Marking O -
Contact (AC) Max Rating R Load 10A@125VAC
Contact Current Rating 10A
Switch Type ROCKER SWITCH
Throw Configuration SPST
Electrical Life 10,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Color - Actuator/Cap Black
Insulation Resistance 100000000Ohm
Contact Resistance 0.035mOhm
Panel Cutout Dimensions Rectangular - 22.00mm x 19.20mm
Switch Function On-Off
Circuit SPST x 2
Actuator Type Concave (Curved), Dual
Body Breadth 18.4912 mm
Body Length or Diameter 21.6916mm
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.187 (4.7mm)
Current Rating 10A
Ingress Protection IP54 - Dust Protected, Water Resistant
Current Rating (Amps) 10A AC
Additional Feature TWO POLE ROCKER
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series RA2, LAMB
Published 2012
Packaging Bulk
Operating Temperature -20°C~105°C
Physical
End Contact Material COPPER
Terminal Material COPPER
Center Contact Material COPPER
Housing Material Polyamide
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Silver
Supply Chain
Factory Lead Time 9 Weeks
