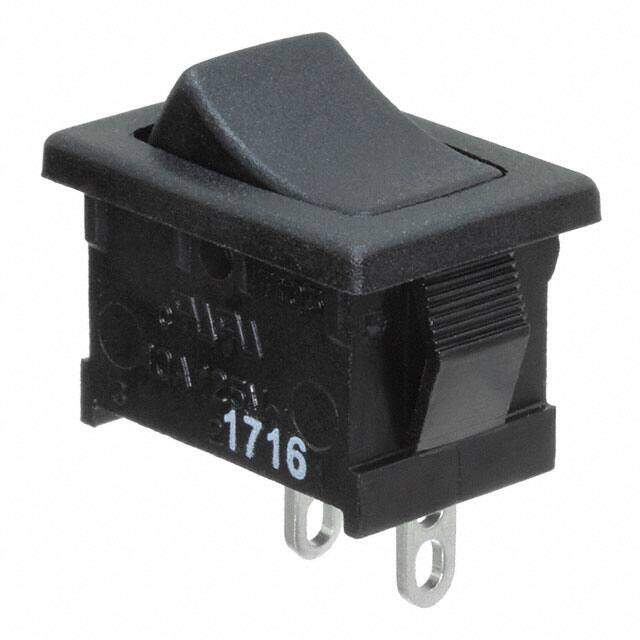

RA12131185
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Rocker Switches
Description
Rocker Switches 16A 125VAC Solder Off-On
PDF
/
Buying Options
Total Price: USD $0.41
Unit Price: USD $0.4136
≥1 USD $0.4136
≥10 USD $0.36696
≥100 USD $0.34848
≥500 USD $0.331584
≥1000 USD $0.316096
≥3000 USD $0.302148
Inventory: 2673
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Silver
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Housing Material Polyamide
Terminal Material COPPER
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Published 2001
Series RA1, LAMB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Current Rating (Amps) 10A AC
Current Rating 10A
Termination Style Solder Lug
Voltage - Rated AC 125V
Body Length or Diameter 18.8976mm
Body Breadth 12.9032 mm
Actuator Type Concave (Curved)
Circuit SPST
Switch Function On-Off
Panel Cutout Dimensions Rectangular - 19.40mm x 13.10mm
Contact Resistance 0.035mOhm
Insulation Resistance 100000000Ohm
Color - Actuator/Cap Black
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 10,000 Cycles
Switch Type ROCKER SWITCH
Contact (AC) Max Rating R Load 10A@125VAC
Actuator Marking Rectangle on End
Contact Function OFF-ON
Dimensions
Body Height 11.6078mm
Length - Termination 0.271 inch
Actuator Length 0.236 inch
Compliance
RoHS Status ROHS3 Compliant
