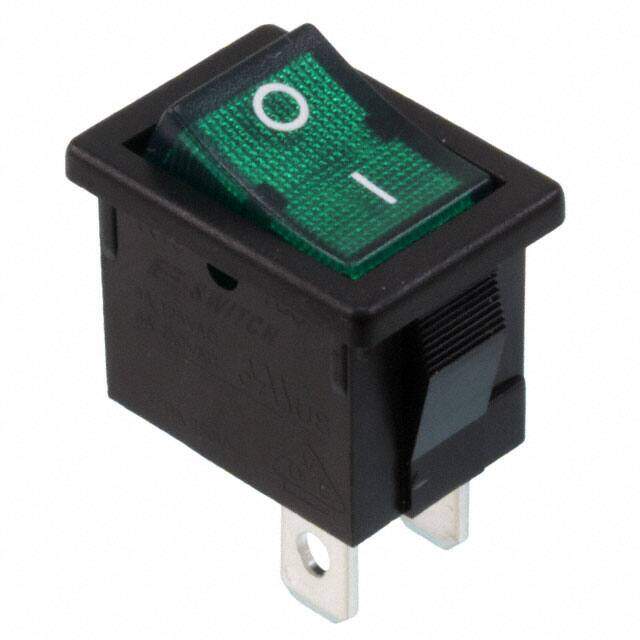

R1973ABLKGILFF4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Rocker Switches
Description
SWITCH ROCKER SPST 9A 125V
PDF
/
Buying Options
Total Price: USD $2.29
Unit Price: USD $2.288
≥1 USD $2.288
≥10 USD $2.05744
≥100 USD $1.766204
≥500 USD $1.493747
Inventory: 556
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Body Height 22mm
Technical
Actuator Marking O -
Contact (AC) Max Rating R Load 9A@125VAC
Contact Current(AC)-Max 9A
Contact Current Rating 9A
Switch Type ROCKER SWITCH
Mechanical Life 30,000 Cycles
Electrical Life 10,000 Cycles
Max Voltage Rating (AC) 250V
Illumination Type, Color Incandescent, Green
Illumination Voltage (Nominal) 24VDC
Color - Actuator/Cap Green
Contact Resistance 20mOhm
Panel Cutout Dimensions Rectangular - 19.20mm x 12.80mm
Switch Function On-Off
Circuit SPST
Housing Color Black
Actuator Type Concave (Curved) - Illuminated
Body Breadth 12.6 mm
Body Length or Diameter 21.1mm
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.187 (4.7mm)
Current Rating 9A
Orientation Straight
Current Rating (Amps) 9A AC
HTS Code 8536.50.90.65
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Series R1973
Published 2008
Packaging Bulk
Operating Temperature -30°C~55°C
Physical
Actuator Material Polycarbonate
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Material Silver
Supply Chain
Factory Lead Time 10 Weeks
