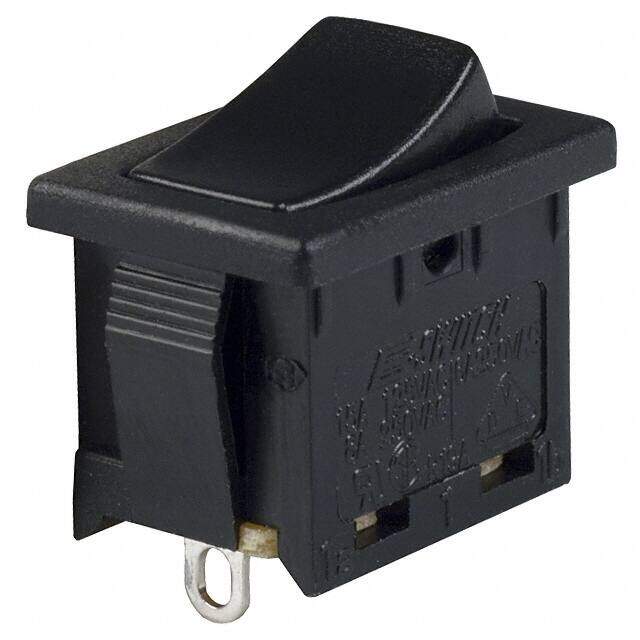

R1966ABLKBLKES
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Rocker Switches
Description
SWITCH ROCKER SPST 15A 125V
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.276
≥1 USD $1.276
≥10 USD $1.1396
≥100 USD $0.981244
≥500 USD $0.843251
Inventory: 375
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Silver
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Insulation Material NYLON
Actuator Material Polycarbonate
Terminal Material COPPER ALLOY
Technical
Operating Temperature -30°C~65°C
Packaging Bulk
Published 2008
Series R1966
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Current Rating (Amps) 15A AC
Orientation Straight
Current Rating 15A
Termination Style Solder Lug
Voltage - Rated AC 125V
Body Length or Diameter 18.5928mm
Body Breadth 12.4968 mm
Actuator Type Concave (Curved)
Circuit SPST
Switch Function On-Off
Panel Cutout Dimensions Rectangular - 19.40mm x 13.00mm
Contact Resistance 20mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 10,000 Cycles
Mechanical Life 30,000 Cycles
Switch Type ROCKER SWITCH
Contact Current Rating 15A
Illumination Type Illuminated
Contact Current(AC)-Max 8A
Contact (AC) Max Rating R Load 8A@250VAC
Contact Voltage(AC)-Max 250V
Actuator Marking No Marking
Contact Function OFF-ON
Dimensions
Body Height 13.9954mm
Length - Termination 0.115 inch
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
