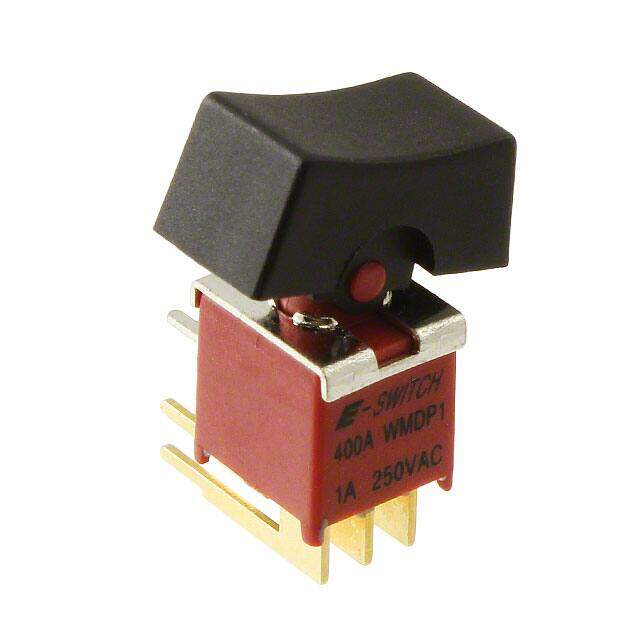

400AWMDP1R1M6QE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Rocker Switches
Description
Rocker Switches Sealed Rocker Switch DPDT 3A 120V
PDF
/
Buying Options
Total Price: USD $3.65
Unit Price: USD $3.652
≥1 USD $3.652
≥10 USD $3.25864
≥100 USD $2.821702
≥500 USD $2.369611
Inventory: 992
Minimum: 1
-
+
Technical Details
Technical
Voltage - Rated AC 120V
Termination Style PC Pin
Current Rating 3A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 3A AC/DC
Voltage - Rated DC 28V
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 400A
Packaging Bulk
Operating Temperature -30°C~85°C
Actuator Angle 25 deg
PCB Hole Count 8
Actuator Marking No Marking
Contact Voltage(AC)-Max 250V
Contact (AC) Max Rating R Load 1A@250VAC
Contact Current(AC)-Max 1A
Illumination Type Illuminated
Contact Current Rating 3A
Switch Type ROCKER SWITCH
Electrical Life 30,000 Cycles
Dielectric Withstanding Voltage 1000VRMS V
Contact Current(DC)-Max 3A
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.01mOhm
Switch Function On-On
Circuit DPDT
Actuator Type Concave (Curved)
Body Breadth 9.1186 mm
Body Length or Diameter 8.128mm
Physical
End Contact Material COPPER ALLOY
Terminal Material COPPER ALLOY
Center Contact Material COPPER ALLOY
Actuator Material NYLON
Insulation Material GLASS FILLED NYLON
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Silver
Supply Chain
Factory Lead Time 9 Weeks
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status ROHS3 Compliant
Dimensions
Length - Termination 0.114 inch
Body Height 11.6078mm
