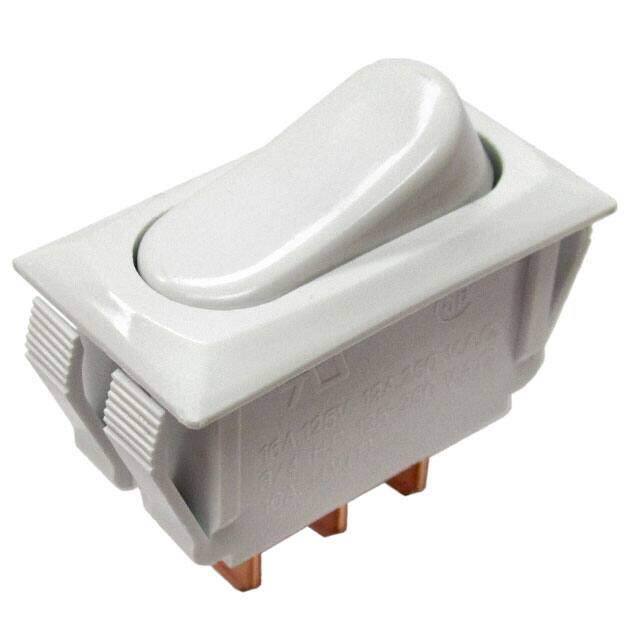

GRS-2012-2504
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Rocker Switches
Description
Rocker Switches SPDT 16A GLOSS WHT
PDF
/
Inventory: 7711
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Plating Silver
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Housing Material NYLON
Actuator Material NYLON
Technical
Operating Temperature -20°C~105°C
Packaging Bulk
Published 2002
Series 2000
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
Voltage - Rated DC 14V
Current Rating (Amps) 16A AC
Orientation Vertical
Current Rating 16A
Termination Style Quick Connect - 0.250 (6.3mm)
Voltage - Rated AC 125V
Body Breadth 13.716 mm
Actuator Type Concave (Curved)
Circuit SPDT
Switch Function On-On
Panel Cutout Dimensions Rectangular - 28.58mm x 13.97mm
Contact Resistance 0.01mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap White
Dielectric Withstanding Voltage 2500VAC V
Electrical Life 25,000 Cycles
Mechanical Life 100,000 Cycles
Switch Type ROCKER SWITCH
Illumination Type Illuminated
Contact Current(AC)-Max 12A
Contact (AC) Max Rating R Load 12A@250VAC
Contact Voltage(AC)-Max 250V
Actuator Marking No Marking
Contact (AC) Max Power Rating R Load 0.75HP@250VAC
Dimensions
Height 14.5mm
Length 31.4mm
Width 17.3mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
