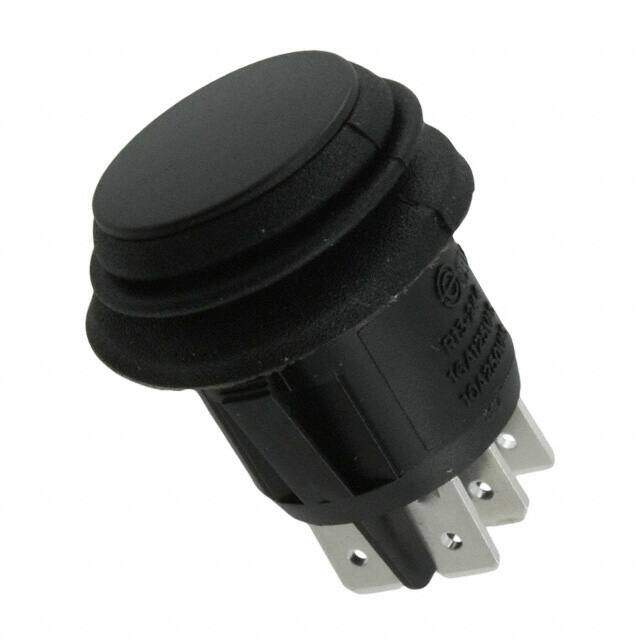

GRB244D802BB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Rocker Switches
Description
SWITCH ROCKER DPDT 16A 125V
PDF
/
Buying Options
Total Price: USD $4.95
Unit Price: USD $4.9456
≥1 USD $4.9456
≥10 USD $4.41232
≥100 USD $4.176832
≥500 USD $4.027056
≥1000 USD $3.83416
≥3000 USD $3.662842
Inventory: 936
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Housing Material NYLON
Actuator Material POLYCARBONATE
Terminal Material COPPER ALLOY
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2010
Series GRB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
Current Rating (Amps) 16A AC
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating 16A
Termination Style Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC 125V
Actuator Type Round
Circuit DPDT
Switch Function On-Off-On
Panel Cutout Dimensions Circular - 20.20mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 100000000Ohm
Color - Actuator/Cap Black
Dielectric Withstanding Voltage 1500VAC V
Mechanical Life 100,000 Cycles
Switch Type ROCKER SWITCH
Illumination Type Illuminated
Contact Current(AC)-Max 10A
Contact (AC) Max Rating R Load 10A@250VAC
Contact Voltage(AC)-Max 250V
Actuator Marking No Marking
Dimensions
Body Height 15.2908mm
Length - Termination 0.335 inch
Actuator Length 0.394 inch
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP65, Water Resistant
