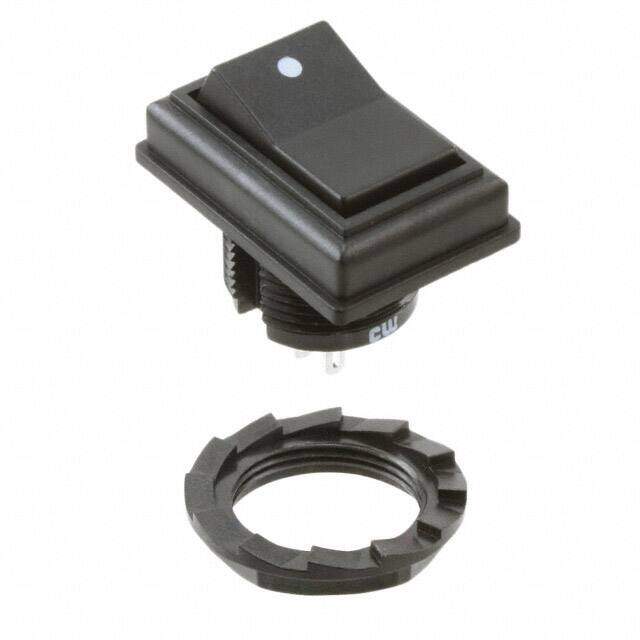

GRB049A05BB1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Rocker Switches
Description
SWITCH ROCKER SPST 10A 125V
PDF
/
Buying Options
Total Price: USD $2.53
Unit Price: USD $2.5344
≥1 USD $2.5344
≥10 USD $2.27568
≥100 USD $2.150016
≥500 USD $2.05568
≥1000 USD $1.950696
≥3000 USD $1.866832
Inventory: 1175
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.476 inch
Length - Termination 0.181 inch
Body Height 11.6078mm
Technical
Contact (AC) Max Rating I Load 6A@250VAC
Actuator Marking Dot
Contact (AC) Max Rating R Load 10A@125VAC
Illumination Type Illuminated
Switch Type ROCKER SWITCH
Mechanical Life 100,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Color - Actuator/Cap Black
Insulation Resistance 100000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 18.00mm Dia
Switch Function On-Off
Circuit SPST
Actuator Type Concave (Standard V)
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 10A
Current Rating (Amps) 10A AC
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series GRB
Published 2010
Packaging Bulk
Physical
Terminal Material BRASS
Actuator Material NYLON
Insulation Material PHENOLIC
Mounting Type Panel Mount, Threaded Body with Nut
Mount Panel
Supply Chain
Factory Lead Time 14 Weeks
