U23J60ZQE2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Rocker Switches
Description

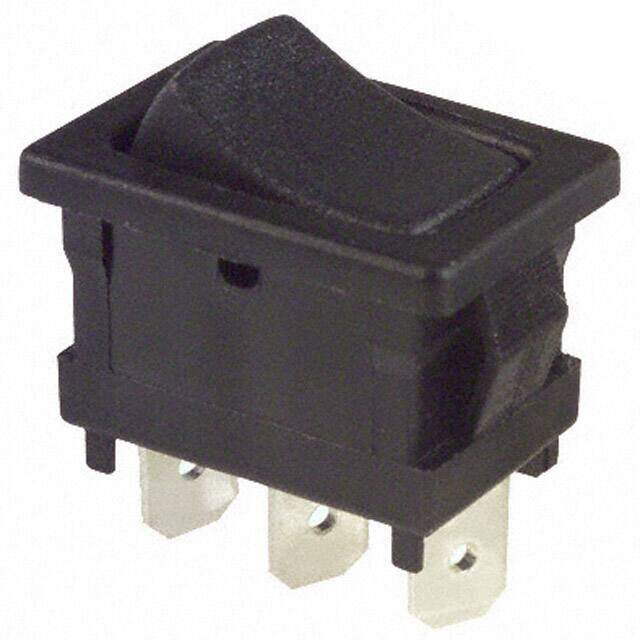

Paddle 7000 Black Panel Mount Snap-In Rocker Switch 12.07mm 5A 250V -30C~85C
PDF
/
Buying Options
Total Price: USD $22.01
Unit Price: USD $22.010769
≥1 USD $22.010769
Inventory: 6615
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 18.16mm
Technical
Actuator Marking No Marking
Max Voltage Rating (DC) 28V
Throw Configuration DPDT
Electrical Life 40,000 Cycles
Max Current Rating 5A
Max Voltage Rating (AC) 250V
Color - Actuator/Cap Black
Panel Cutout Dimensions Rectangular - 15.24mm x 12.70mm
Switch Function On-Off-On
Circuit DPDT
Actuator Type Paddle
Voltage - Rated AC 120V
Termination Style Solder Lug
Current Rating 5A
Depth 12.07mm
Current Rating (Amps) 5A AC/DC
Voltage - Rated DC 28V
Min Operating Temperature -30°C
Max Operating Temperature 85°C
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 7000
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Nylon
Housing Material Stainless Steel
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Silver
Contact Material Silver
Supply Chain
Factory Lead Time 14 Weeks
