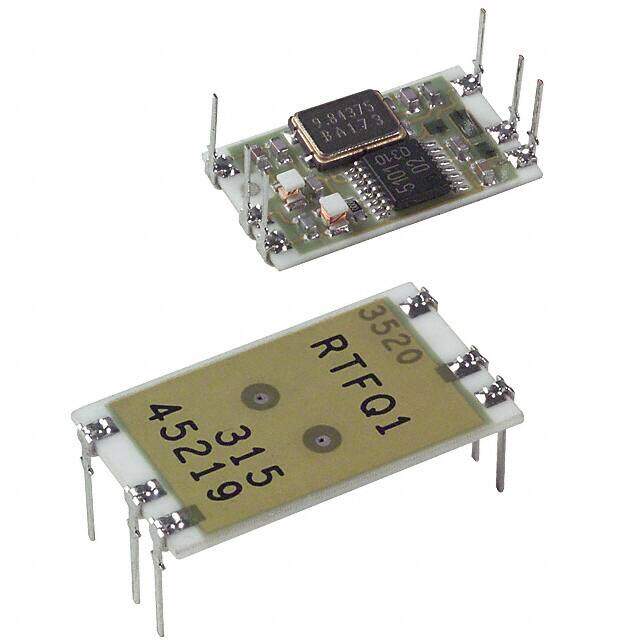

FMRTFQ1-315
RoHS
/
Package Module
Category RF/IF and RFID / RF Transmitters
Description
RF TRANSMITTER FM 315MHZ MODULE
PDF
/
Inventory: 8062
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Thickness 2mm
Width 11.4mm
Length 20.3mm
Technical
Antenna Connector PCB, Surface Mount
Modulation or Protocol FM
Current - Transmitting 7mA
Data Rate (Max) 9.6kbps
Power - Output 5dBm
Data Interface PCB, Through Hole
Nominal Supply Current 7mA
Frequency 315MHz
Voltage - Supply 2.1V~4V
Applications Car Alarms, Remote Sensing, Wireless Security
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2004
Packaging Tray
Operating Temperature 0°C~70°C
Physical
Package / Case Module
