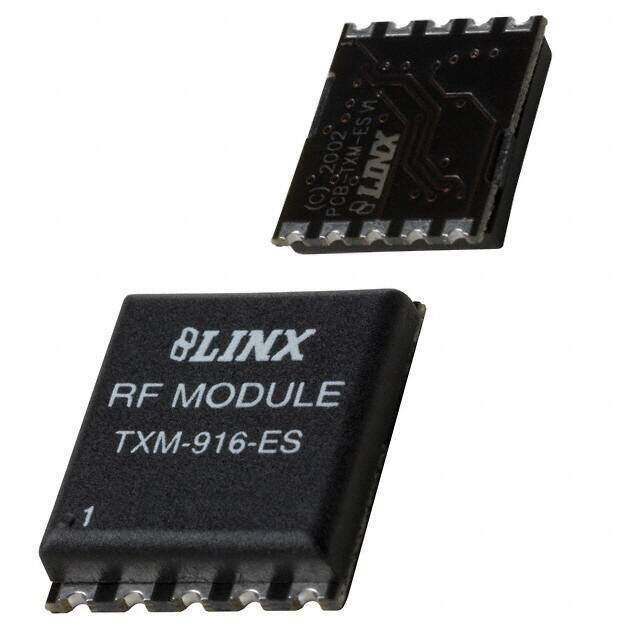

TXM-916-ES image
Favorite
TXM-916-ES image
Favorite
RoHS
/
Package Module
Category RF/IF and RFID / RF Transmitters
Description RF XMITTER FM/FSK 916MHZ MODULE
PDF
/
Inventory: 3227
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Thickness 3.18mm
Width 21.1mm
Length 12.9mm

Technical

Antenna Connector PCB, Surface Mount
Modulation or Protocol FM, FSK
Data Rate (Max) 56kbps
Power - Output 4dBm
Data Interface PCB, Surface Mount
Interface Analog
Operating Supply Voltage 3V
Max Output Current 8.5mA
Frequency 916MHz
Voltage - Supply 2.1V~4V
Applications Home/Building Automation, Industrial Control and Monitoring
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series ES
Published 2010
Packaging Tube
Operating Temperature 0°C~70°C

Physical

Number of Pins 10
Package / Case Module
Mount Surface Mount

Supply Chain

Factory Lead Time 8 Weeks
