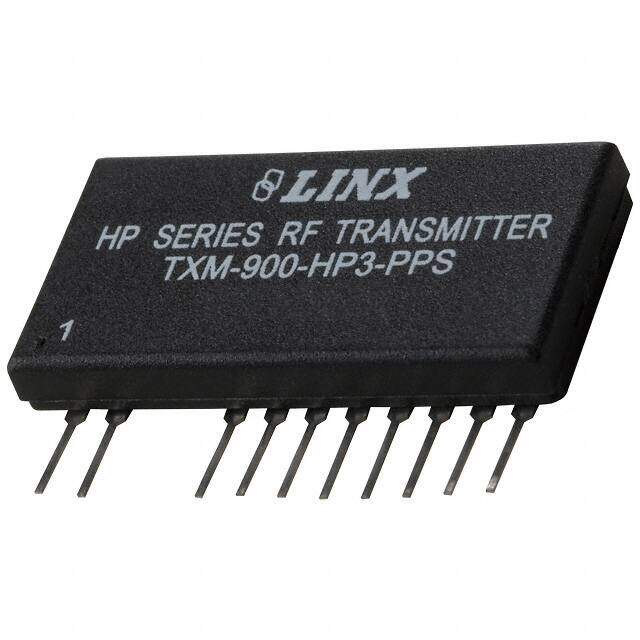

TXM-900-HP3-PPS
RoHS
/
Package 10-SIP
Category RF/IF and RFID / RF Transmitters
Description
Tube 8 Analog HP3 RF Transmitter 32.8mm 3V -3dBm~3dBm 902MHz~928MHz
PDF
/
Inventory: 8563
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Thickness 4.52mm
Width 17.3mm
Length 32.8mm
Technical
Antenna Connector Through Hole
Modulation or Protocol FM, FSK
Current - Transmitting 14mA
Data Rate (Max) 56kbps
Power - Output -3dBm~3dBm
Data Interface PCB, Through Hole
Nominal Supply Current 15mA
Interface Analog
Number of Channels 8
Operating Supply Voltage 3V
Max Output Current 17mA
Frequency 902MHz~928MHz
Voltage - Supply 2.8V~13V
Applications ISM, Remote Monitoring, Telemetry, Voice / Audio
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Multiple Channels, Analog and Digital Data
Series HP3
Published 2008
Packaging Tube
Operating Temperature -30°C~85°C
Physical
Package / Case 10-SIP
