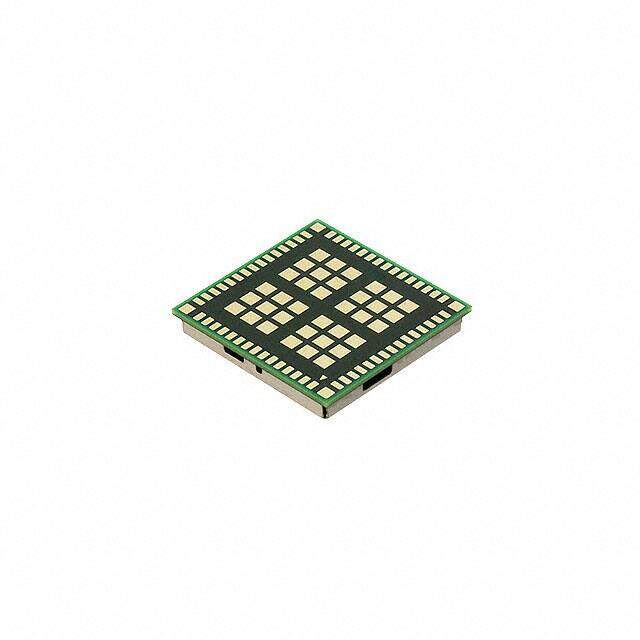

WL1835MODGBMOCR
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MOD BLUETOOTH/WIFI CHIP
PDF
/
Buying Options
Total Price: USD $18.65
Unit Price: USD $18.6472
≥1 USD $18.6472
≥10 USD $16.87048
≥100 USD $15.538336
≥500 USD $14.206544
≥1000 USD $13.318659
≥3000 USD $12.430757
Inventory: 1165
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 2mm
Width 13.4mm
Length 13.3mm
Height 2mm
Technical
Sensitivity (dBm) -96.3 dBm
Modulation CCK, DSSS, GFSK, OFDM
Current - Transmitting 238mA~420mA
Current - Receiving 49mA~85mA
Serial Interfaces SDIO, UART
RF Family/Standard Bluetooth, WiFi
Power - Output 17.3dBm
Telecom IC Type TELECOM CIRCUIT
Protocol 802.11b/g/n, Bluetooth 4.2
Data Rate 54Mbps
Interface SDIO, UART
Power Supplies 2.9/4.8V
Base Part Number WL1835
Frequency 2.4GHz
Terminal Pitch 0.7mm
Supply Voltage 3.7V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position BOTTOM
Voltage - Supply 2.9V~4.8V
Subcategory Other Telecom ICs
HTS Code 8542.39.00.01
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Terminations 100
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series WiLink?
Packaging Tape & Reel (TR)
Operating Temperature -20°C~70°C
Physical
Number of Pins 100
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 16 Weeks
