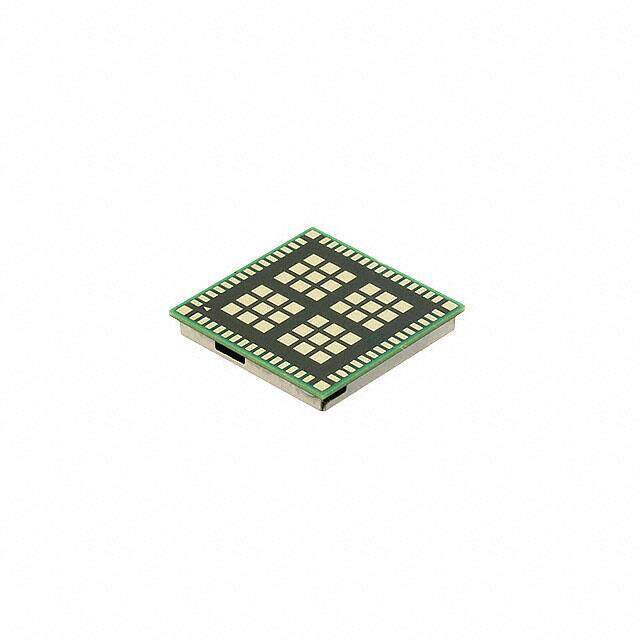

WL1831MODGBMOCT
RoHS
RoHS compliant
RoHS compliantPackage 100-SMD Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MOD BLUETOOTH/WIFI CHIP
PDF
/
Buying Options
Total Price: USD $17.66
Unit Price: USD $17.6616
≥1 USD $17.6616
≥10 USD $16.29936
≥100 USD $14.940992
≥500 USD $13.809048
Inventory: 1000
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 100-SMD Module
Number of Pins 100
Technical
Operating Temperature -20°C~70°C
Packaging Tape & Reel (TR)
Series WiLink?
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 100
ECCN Code 5A992.C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
HTS Code 8473.30.11.80
Subcategory Other Telecom ICs
Voltage - Supply 2.9V~4.8V
Terminal Position BOTTOM
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 3.7V
Terminal Pitch 0.7mm
Frequency 2.4GHz
Base Part Number WL1831
Power Supplies 2.9/4.8V
Interface SDIO, UART
Data Rate 54Mbps
Protocol 802.11b/g/n, Bluetooth 4.2
Telecom IC Type TELECOM CIRCUIT
Power - Output 17.3dBm
RF Family/Standard Bluetooth, WiFi
Serial Interfaces SDIO, UART
Current - Receiving 49mA~85mA
Current - Transmitting 238mA~420mA
Modulation CCK, DSSS, GFSK, OFDM
Sensitivity (dBm) -96.3 dBm
Dimensions
Height 2mm
Length 13.3mm
Width 13.4mm
Thickness 2mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
