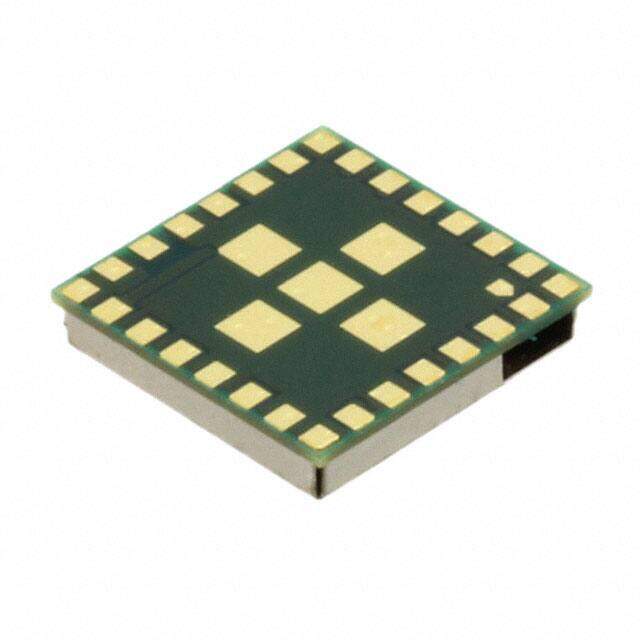

CC2564MODNCMOET
RoHS
RoHS compliant
RoHS compliantPackage 33-SMD Module
Category RF/IF and RFID / RF Transceiver Modules
Description
BLUETOOTH, VERSION4.1, 2402-2480MHZ
PDF
/
Buying Options
Total Price: USD $9.76
Unit Price: USD $9.7592
≥1 USD $9.7592
≥10 USD $8.82728
≥100 USD $8.130144
≥500 USD $7.433184
Inventory: 835
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Thickness 1.4mm
Width 7mm
Length 7mm
Technical
Sensitivity (dBm) -93 dBm
Current - Receiving 112.5mA
Serial Interfaces I2S, UART
Antenna Type Antenna Not Included
RF Family/Standard Bluetooth
Power - Output 10dBm
Telecom IC Type TELECOM CIRCUIT
Protocol Bluetooth v4.1
Utilized IC / Part CC2564
Data Rate 4Mbps
Interface UART
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 2.4GHz
Supply Voltage 3.6V
Number of Functions 1
Peak Reflow Temperature (Cel) 250
Terminal Form NO LEAD
Terminal Position UNSPECIFIED
Voltage - Supply 2.2V~4.8V
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Number of Terminations 33
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Packaging Tape & Reel (TR)
Operating Temperature -30°C~85°C
Physical
Number of Pins 33
Package / Case 33-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Factory Lead Time 12 Weeks
