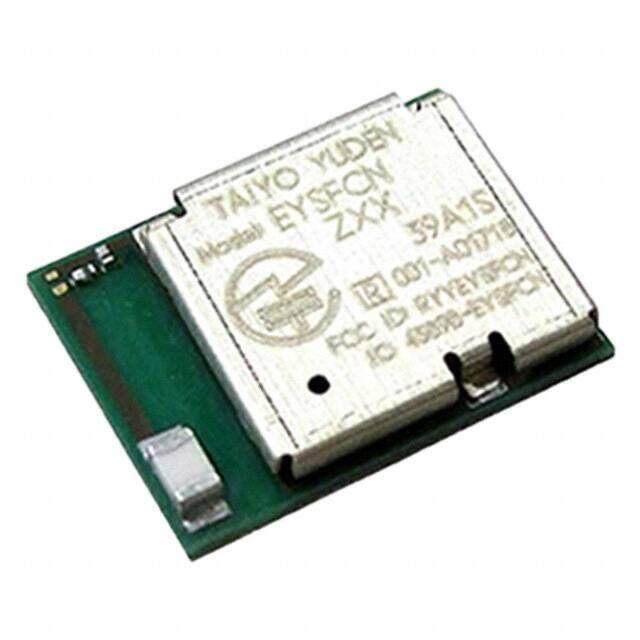

EYSFCNZXX
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
Bluetooth 1.8V to 3.6V 49-Pin SMD
PDF
/
Inventory: 3073
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Number of Pins 49
Technical
Operating Temperature -25°C~75°C
Packaging Tape & Reel (TR)
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Max Operating Temperature 75°C
Min Operating Temperature -25°C
Voltage - Supply 1.8V~3.6V
Frequency 2.4GHz
Operating Supply Voltage 3.6V
Interface I2C, SPI, UART
Memory Size 256kB Flash 16kB RAM
Data Rate 8Mbps
Utilized IC / Part nRF51822
Protocol Bluetooth v4.0
Power - Output 4dBm
RF Family/Standard Bluetooth
Antenna Type Integrated, Chip
Sensitivity -91dBm
Serial Interfaces I2C, SPI, UART
Current - Receiving 13mA
Current - Transmitting 10.5mA~16mA
Sensitivity (dBm) -91 dBm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
