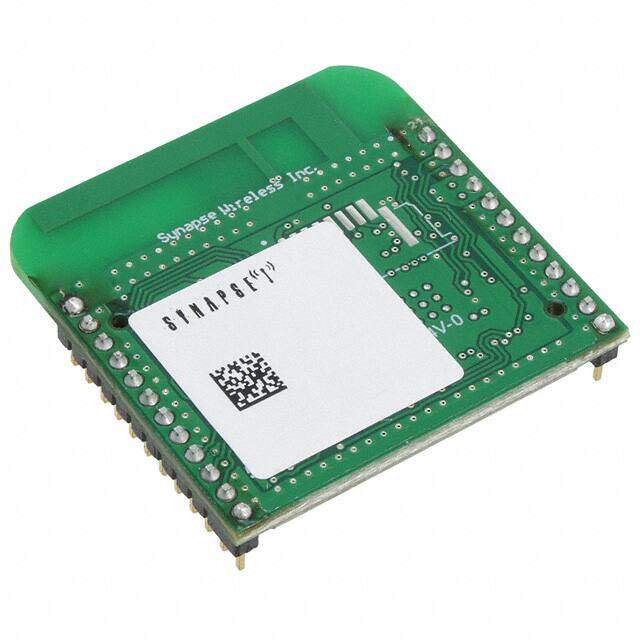

RF200PF1
RoHS
/
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MOD 802.15.4 TRACE ANT
PDF
/
Inventory: 5986
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2013
Series SNAP? RF Engine?
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Voltage - Supply 2.7V~3.6V
Frequency 2.4GHz
Max Output Current 80mA
Operating Supply Voltage 3.6V
Interface I2C, SPI, UART
Memory Size 128kB Flash 58kB RAM
Data Rate 2Mbps
Power - Output 15dBm
RF Family/Standard 802.15.4
Antenna Type Integrated, Trace
Sensitivity -103dBm
Serial Interfaces I2C, JTAG, SPI, UART
Current - Receiving 20mA
Current - Transmitting 80mA
Modulation DSSS, O-QPSK
Sensitivity (dBm) -103 dBm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Number of Pins 24
Package / Case Module
Mounting Type Through Hole
Mount Through Hole
