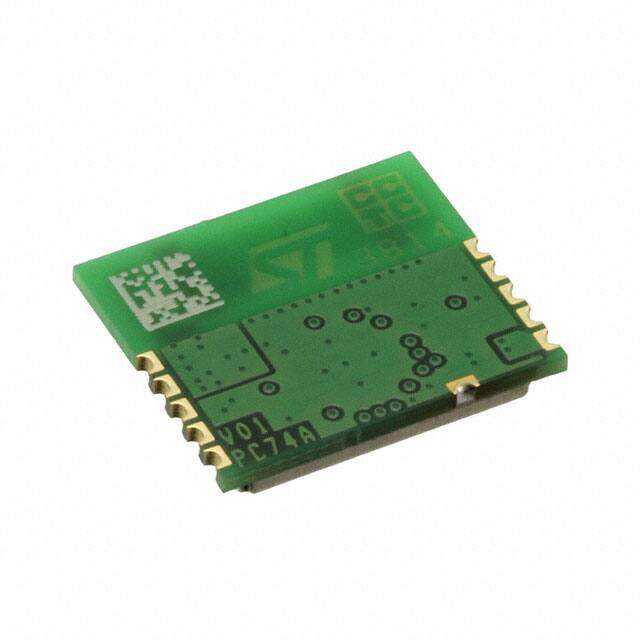

SPSGRF-868
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MODULE ISM<1GHZ CHIP ANT
PDF
/
Buying Options
Total Price: USD $25.01
Unit Price: USD $25.0078
≥1 USD $25.0078
≥10 USD $20.52
≥100 USD $19.87875
≥500 USD $19.2375
≥1000 USD $18.59625
Inventory: 2460
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 11.5mm
Length 13.5mm
Height 2.2mm
Technical
Number of GPIO 4
Sensitivity (dBm) -118 dBm
Modulation 2-FSK, ASK, GFSK, GMSK, MSK, OOK
Current - Transmitting 9mA~22mA
Current - Receiving 10mA
Serial Interfaces SPI
Antenna Type Integrated, Chip
RF Family/Standard General ISM < 1GHz
Power - Output 11.6dBm
Telecom IC Type TELECOM CIRCUIT
Utilized IC / Part SPIRIT1
Data Rate 500kbps
JESD-30 Code R-XXMA-N11
Base Part Number SPSGRF
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 868MHz
Terminal Pitch 1.27mm
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position UNSPECIFIED
Voltage - Supply 1.8V~3.6V
ECCN Code 5A992.C
Number of Terminations 11
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 weeks ago)
Factory Lead Time 24 Weeks
