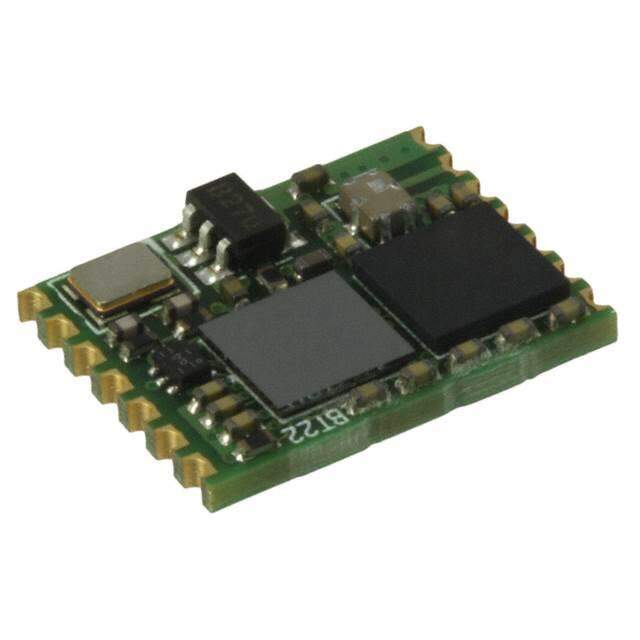

SPBT2532C2.AT image
Favorite
SPBT2532C2.AT image
Favorite

SPBT2532C2.AT

STMicroelectronics
RoHS
RoHS RoHS compliant
Package PCB Module
Category RF/IF and RFID / RF Transceiver Modules
Description RF TXRX MODULE BLUETOOTH
PDF
/
Inventory: 1169
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Width 10.4mm
Length 13.5mm

Technical

Sensitivity (dBm) -85 dBm
Current - Transmitting 29mA
Current - Receiving 28mA
Serial Interfaces I2C, I2S, SPI, UART
Antenna Type Antenna Not Included
RF Family/Standard Bluetooth
Power - Output 2dBm
Telecom IC Type TELECOM CIRCUIT
Protocol Bluetooth v2.1 + EDR, Class 2
Utilized IC / Part STLC2500D
Data Rate 2Mbps
Memory Size 256kB Flash 48kB RAM
Interface I2C, SPI, UART
Operating Supply Voltage 3V
Pin Count 14
Base Part Number SPBT2532
Frequency 2.4GHz
Terminal Pitch 1.5mm
Supply Voltage 3V
Number of Functions 1
Terminal Position DUAL
Voltage - Supply 3.3V
HTS Code 8542.39.00.01
Number of Terminations 14
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Number of Pins 14
Package / Case PCB Module
Mounting Type Surface Mount
Mount Surface Mount
