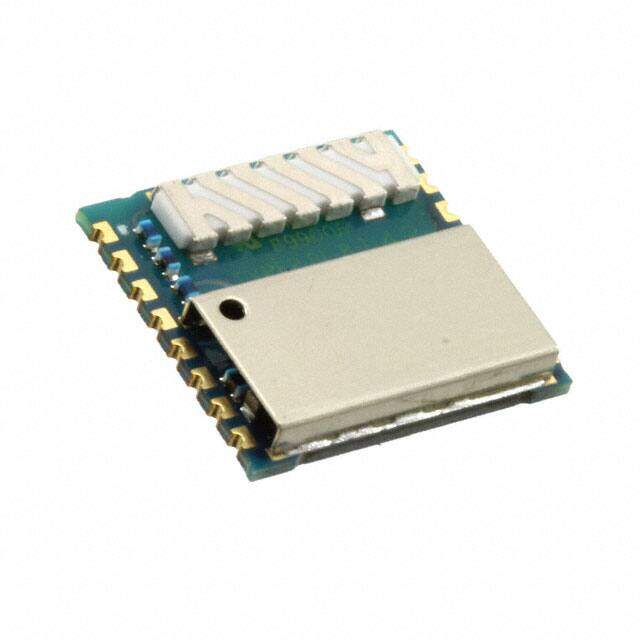

SP1ML-915
RoHS
RoHS compliant
RoHS compliantPackage 16-SMD Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MODULE ISM<1GHZ CHIP ANT
PDF
/
Buying Options
Total Price: USD $19.06
Unit Price: USD $19.0608
≥1 USD $19.0608
≥10 USD $17.59824
Inventory: 45
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 13.4mm
Length 14mm
Height Seated (Max) 2.5mm
Technical
Modulation 2-FSK, ASK, GFSK, GMSK, OOK
Current - Transmitting 8mA~20mA
Current - Receiving 13.5mA
Serial Interfaces SPI, UART
Antenna Type Integrated, Chip
RF Family/Standard General ISM < 1GHz
Power - Output 11.6dBm
Utilized IC / Part SPIRIT1
Data Rate 500kbps
uPs/uCs/Peripheral ICs Type MICROPROCESSOR CIRCUIT
Memory Size 128kB Flash 16kB RAM
Interface SPI, UART
Base Part Number SP1ML
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 915MHz
Terminal Pitch 1.5mm
Supply Voltage 3V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position DUAL
Voltage - Supply 1.8V~3.6V
Technology CMOS
HTS Code 8542.31.00.01
ECCN Code 5A992.C
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 16
Package / Case 16-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
