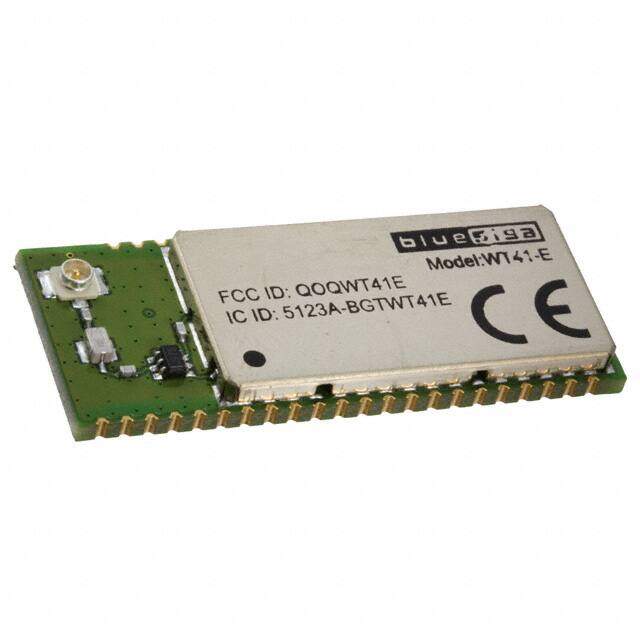

WT41-E-AI5
RoHS
/
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MODULE BLUETOOTH U.FL
PDF
/
Inventory: 1922
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Sensitivity (dBm) -92 dBm
Current - Transmitting 51.6mA~120mA
Current - Receiving 52.6mA
Serial Interfaces PIO, SPI, UART, USB
Sensitivity -92dBm
Antenna Type Antenna Not Included, U.FL
RF Family/Standard Bluetooth
Power - Output 19dBm
Protocol Bluetooth v2.1 + EDR, Class 1
Data Rate 3Mbps
Interface GPIO, SPI, UART, USB
Operating Supply Voltage 3.3V
Frequency 2.4GHz
Voltage - Supply 3V~3.6V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Published 2013
Packaging Strip
Operating Temperature -40°C~85°C
Physical
Number of Pins 59
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
