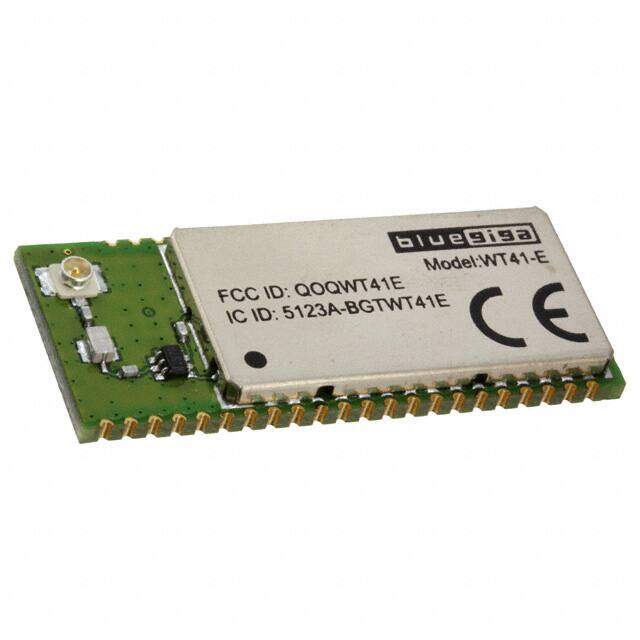

WT41-E-AI4
RoHS
/
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MODULE BLUETOOTH U.FL
PDF
/
Inventory: 7012
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Technical
Operating Temperature -40°C~85°C
Packaging Strip
Published 2013
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 57
HTS Code 8542.39.00.01
Voltage - Supply 3V~3.6V
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 1.5mm
Frequency 2.4GHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XQMA-N57
Operating Supply Voltage 3.3V
Interface GPIO, SPI, UART, USB
Data Rate 3Mbps
Protocol Bluetooth v2.1 + EDR, Class 1
Telecom IC Type TELECOM CIRCUIT
Power - Output 19dBm
RF Family/Standard Bluetooth
Antenna Type Antenna Not Included, U.FL
Serial Interfaces PIO, SPI, UART, USB
Current - Receiving 52.6mA
Current - Transmitting 51.6mA~120mA
Sensitivity (dBm) -92 dBm
Dimensions
Height Seated (Max) 3.35mm
Length 35.55mm
Width 14.5mm
Compliance
RoHS Status RoHS Compliant
