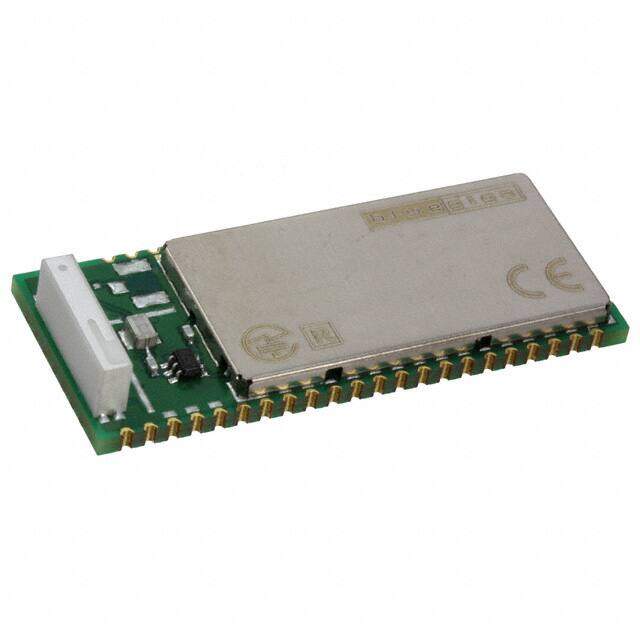

WT41-A-AI5
RoHS
/
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MOD BLUETOOTH CHIP ANT
PDF
/
Inventory: 6609
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 14mm
Length 35.3mm
Height Seated (Max) 5.65mm
Technical
Sensitivity (dBm) -92 dBm
Current - Transmitting 51.6mA~120mA
Current - Receiving 52.6mA
Serial Interfaces PIO, SPI, UART, USB
Antenna Type Integrated, Chip
RF Family/Standard Bluetooth
Power - Output 19dBm
Telecom IC Type TELECOM CIRCUIT
Protocol Bluetooth v2.1 + EDR, Class 1
Utilized IC / Part BlueCore4
Data Rate 3Mbps
Interface GPIO, SPI, UART, USB
Operating Supply Voltage 3.3V
Frequency 2.4GHz
Terminal Pitch 1.5mm
Supply Voltage 3.3V
Number of Functions 1
Terminal Position UNSPECIFIED
Voltage - Supply 3V~3.6V
HTS Code 8542.39.00.01
Number of Terminations 59
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Published 2010
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C
Physical
Number of Pins 59
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
