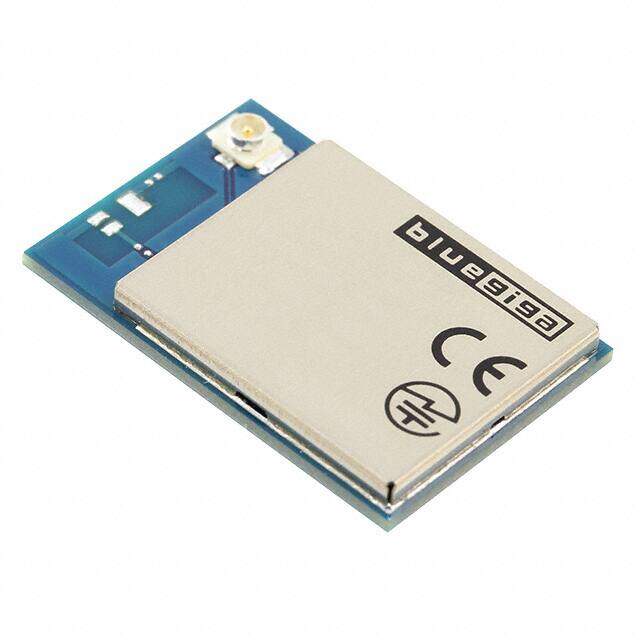

WT32I-E-AI6
RoHS
/
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MODULE BLUETOOTH U.FL
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2014
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 50
HTS Code 8542.39.00.01
Voltage - Supply 1.8V~3.6V
Terminal Position UNSPECIFIED
Number of Functions 1
Terminal Pitch 1mm
Frequency 2.4GHz
JESD-30 Code R-XXMA-N50
Operating Supply Voltage 3.6V
Interface SPI, UART, USB
Memory Size 16MB Flash
Data Rate 12 Mbps
Utilized IC / Part BlueCore5
Protocol Bluetooth v3.0
Telecom IC Type TELECOM CIRCUIT
Power - Output 6.5dBm
RF Family/Standard Bluetooth
Antenna Type Antenna Not Included, U.FL
Serial Interfaces I2S, PIO, SPI, UART, USB
Sensitivity (dBm) -91 dBm
Dimensions
Height Seated (Max) 2.55mm
Length 23.9mm
Width 15.9mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
