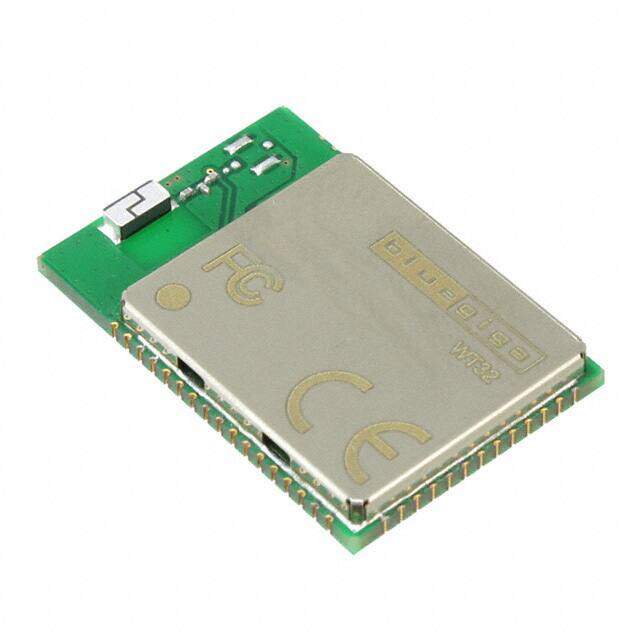

WT32-A-AI5
RoHS
/
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MOD BLUETOOTH CHIP ANT
PDF
/
Inventory: 6459
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Number of Pins 50
Technical
Operating Temperature -30°C~85°C
Packaging Tape & Reel (TR)
Published 2009
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 50
HTS Code 8542.39.00.01
Voltage - Supply 1.8V~3.6V
Terminal Position UNSPECIFIED
Number of Functions 1
Terminal Pitch 1mm
Frequency 2.4GHz
Operating Supply Voltage 3.3V
Interface SPI, Serial, UART, USB
Max Supply Current 2mA
Data Rate 3Mbps
Utilized IC / Part BlueCore5
Protocol Bluetooth v2.1 + EDR, Class 2
Telecom IC Type TELECOM CIRCUIT
Power - Output 7dbm
RF Family/Standard Bluetooth
Antenna Type Integrated, Chip
Sensitivity -86dBm
Serial Interfaces I2S, PIO, SPI, UART, USB
Current - Receiving 4.5mA
Modulation DQPSK, GFSK
Sensitivity (dBm) -87 dBm
Dimensions
Height Seated (Max) 2.6mm
Length 23.9mm
Width 15.9mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
