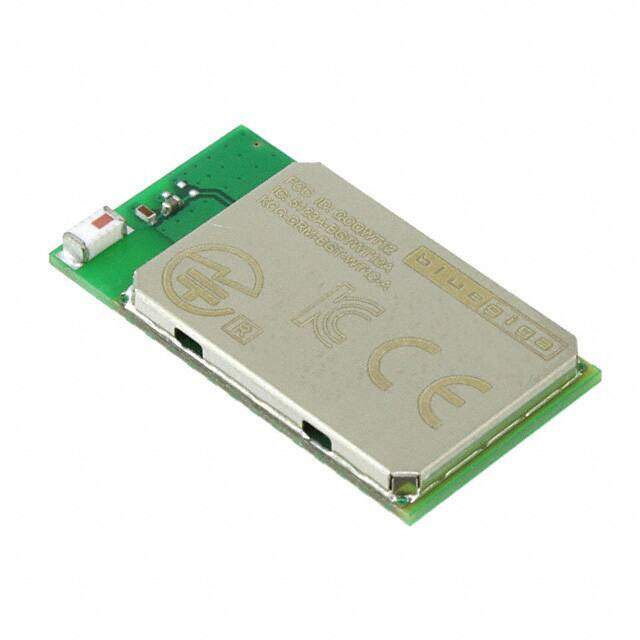

WT12-A-AI3
RoHS
/
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MOD BLUETOOTH CHIP ANT
PDF
/
Inventory: 962
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Technical
Sensitivity (dBm) -86 dBm
Modulation DQPSK, GFSK
Current - Transmitting 70mA
Current - Receiving 70mA
Serial Interfaces PIO, SPI, UART, USB
Sensitivity -86dBm
Antenna Type Integrated, Chip
RF Family/Standard Bluetooth
Power - Output 3dBm
Protocol Bluetooth v2.1 + EDR, Class 2
Utilized IC / Part BlueCore4
Data Rate 3Mbps
Max Supply Current 70mA
Memory Size 8MB Flash
Min Supply Voltage 3.2V
Max Supply Voltage 3.4V
Interface SPI, UART, USB
Frequency 2.4GHz
Voltage - Supply 3.1V~3.6V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Last Time Buy
Published 2004
Packaging Strip
Operating Temperature -40°C~85°C
Physical
Number of Pins 31
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
