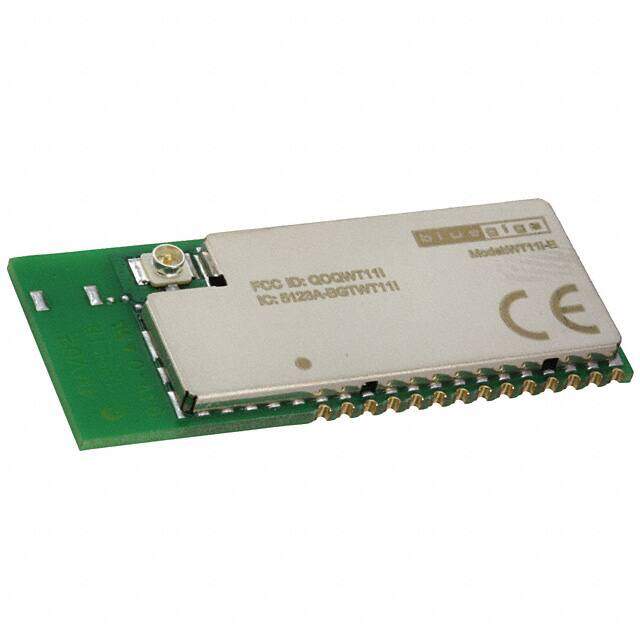

WT11I-E-AI4

Silicon Labs
RoHS
/
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description RF TXRX MODULE BLUETOOTH U.FL
PDF
/
Inventory: 6615
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Number of Pins 28

Technical

Operating Temperature -40°C~85°C
Packaging Strip
Published 2013
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 28
HTS Code 8542.39.00.01
Voltage - Supply 2.7V~3.6V
Terminal Position DUAL
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 1.5mm
Frequency 2.4GHz
Operating Supply Voltage 3.3V
Interface SPI, UART, USB
Data Rate 3Mbps
Protocol Bluetooth v2.0 + EDR, Class 1
Telecom IC Type TELECOM CIRCUIT
Power - Output 17dBm
RF Family/Standard Bluetooth
Antenna Type Antenna Not Included, U.FL
Serial Interfaces PIO, SPI, UART, USB
Current - Receiving 39mA
Current - Transmitting 54mA~128mA
Sensitivity (dBm) -86 dBm

Dimensions

Height Seated (Max) 2.86mm
Length 35.75mm
Width 14.5mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
