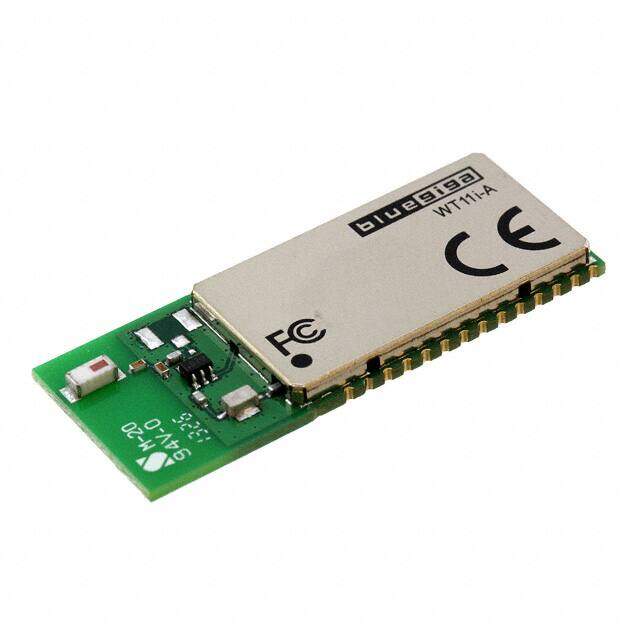

WT11I-A-AI5
RoHS
/
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MOD BLUETOOTH CHIP ANT
PDF
/
Inventory: 1193
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 14.5mm
Length 35.75mm
Height Seated (Max) 2.86mm
Technical
Sensitivity (dBm) -86 dBm
Current - Transmitting 54mA~128mA
Current - Receiving 39mA
Serial Interfaces PIO, SPI, UART, USB
Antenna Type Integrated, Chip
RF Family/Standard Bluetooth
Power - Output 17dBm
Telecom IC Type TELECOM CIRCUIT
Protocol Bluetooth v2.0 + EDR, Class 1
Utilized IC / Part BlueCore4
Data Rate 3Mbps
Interface GPIO, SPI, UART, USB
Operating Supply Voltage 3.3V
JESD-30 Code R-XDMA-N28
Frequency 2.4GHz
Reach Compliance Code unknown
Terminal Pitch 1.5mm
Supply Voltage 3.3V
Number of Functions 1
Terminal Form NO LEAD
Terminal Position DUAL
Voltage - Supply 2.7V~3.6V
HTS Code 8542.39.00.01
Number of Terminations 28
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
