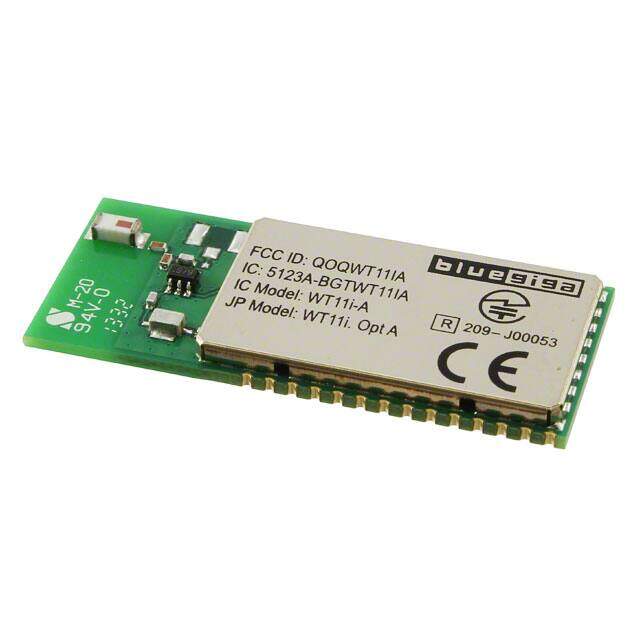

WT11I-A-AI4
RoHS
/
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MOD BLUETOOTH CHIP ANT
PDF
/
Buying Options
Total Price: USD $590.65
Unit Price: USD $590.653
≥1 USD $590.653
Inventory: 209
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Technical
Operating Temperature -40°C~85°C
Packaging Cut Tape (CT)
Published 2011
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 28
HTS Code 8542.39.00.01
Voltage - Supply 2.7V~3.6V
Terminal Position DUAL
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 1.5mm
Frequency 2.4GHz
JESD-30 Code R-XDMA-N28
Operating Supply Voltage 3.3V
Interface GPIO, SPI, UART, USB
Data Rate 3Mbps
Utilized IC / Part BlueCore4
Protocol Bluetooth v2.0 + EDR, Class 1
Telecom IC Type TELECOM CIRCUIT
Power - Output 17dBm
RF Family/Standard Bluetooth
Antenna Type Integrated, Chip
Serial Interfaces PIO, SPI, UART, USB
Current - Receiving 39mA
Current - Transmitting 54mA~128mA
Sensitivity (dBm) -86 dBm
Dimensions
Height Seated (Max) 2.86mm
Length 35.75mm
Width 14.5mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
