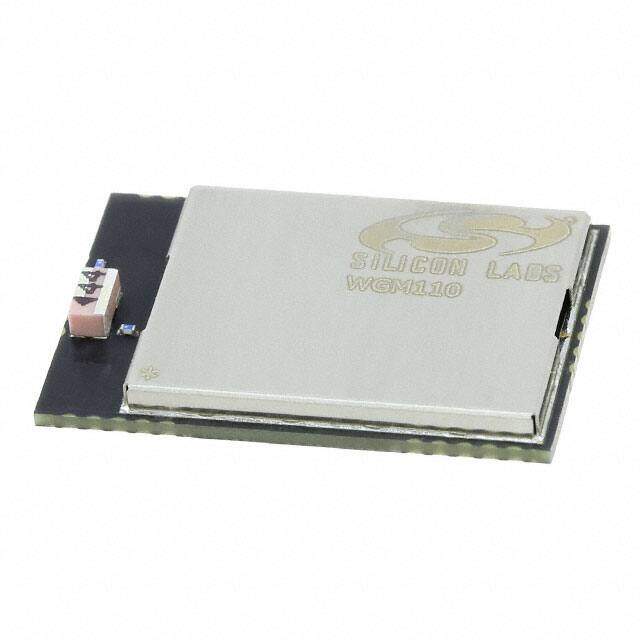

WGM110A1MV2R
RoHS
/
Package 52-SMD Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MODULE WIFI CHIP ANT
PDF
/
Buying Options
Total Price: USD $68000
Unit Price: USD $68
≥1000 USD $68
≥3000 USD $64.15094
Inventory: 1000
Minimum: 1000
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Width 14.4mm
Length 21mm
Height Seated (Max) 2.1mm
Technical
Current - Transmitting 261mA
Current - Receiving 81mA
Serial Interfaces I2S, SPI, UART, USB
Sensitivity -98dBm
Antenna Type Integrated, Chip
RF Family/Standard WiFi
Power - Output 16dBm
Telecom IC Type TELECOM CIRCUIT
Protocol 802.11b/g/n
Data Rate 72.2Mbps
Memory Size 1MB Flash 128kB RAM
JESD-30 Code R-XXMA-N40
Frequency 2.4GHz
Terminal Pitch 1.25mm
Supply Voltage 3.3V
Number of Functions 1
Terminal Form NO LEAD
Terminal Position UNSPECIFIED
Voltage - Supply 2.7V~4.8V
HTS Code 8542.39.00.01
Number of Terminations 40
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series Wizard Gecko
Published 2016
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case 52-SMD Module
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
