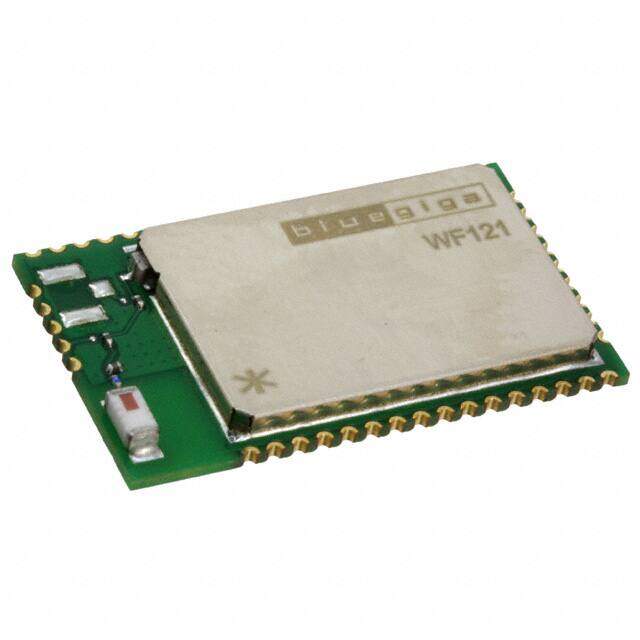

WF121-A-V2
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MODULE WIFI CHIP ANT
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Manufacturer Package Identifier WF121-A-V2
Number of Pins 55
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 2.3mm
Technical
Sensitivity (dBm) -97 dBm
Current - Transmitting 143mA
Current - Receiving 127mA
Serial Interfaces I2C, Ethernet, SPI, UART, USB
Sensitivity -97dBm
Antenna Type Integrated, Chip
RF Family/Standard WiFi
Power - Output 17dBm
Max Frequency 2.472GHz
Protocol 802.11b/g/n
Data Rate 72.2Mbps
Memory Size 512kB Flash 128kB SRAM
Min Supply Voltage 2.3V
Max Supply Voltage 4.8V
Interface Ethernet, I2C, SPI, UART, USB
Number of Channels 11
Frequency 2.4GHz
Voltage - Supply 2.3V~3.6V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Published 2013
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C
