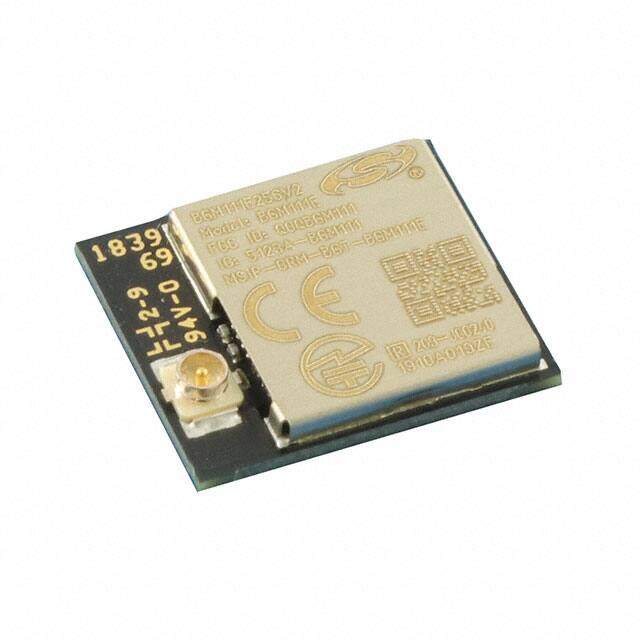

BGM111E256V2R
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
BLUETOOTH 4.X PCB MODULE, 256KB
PDF
/
Buying Options
Total Price: USD $15.35
Unit Price: USD $15.35174
≥1 USD $15.35174
≥200 USD $6.125991
≥500 USD $5.921179
≥1000 USD $5.820086
Inventory: 1414
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 12.9mm
Length 15mm
Height Seated (Max) 2.15mm
Technical
Modulation GFSK
Current - Transmitting 8.2mA~24.6mA
Current - Receiving 9mA
Serial Interfaces I2C, I2S, SPI, UART, USART
Sensitivity -92dBm
Antenna Type Integrated, Chip
RF Family/Standard Bluetooth
Power - Output 8dBm
Telecom IC Type TELECOM CIRCUIT
Protocol Bluetooth v4.2
Utilized IC / Part EFR32BG
Data Rate 1Mbps
Memory Size 256kB Flash 32kB RAM
JESD-30 Code R-XXMA-B31
Frequency 2.4GHz~2.484GHz
Reach Compliance Code compliant
Terminal Pitch 1.2mm
Supply Voltage 3.3V
Number of Functions 1
Terminal Form BUTT
Terminal Position UNSPECIFIED
Voltage - Supply 1.85V~3.8V
HTS Code 8542.39.00.01
Number of Terminations 31
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series Blue Gecko
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case Module
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
