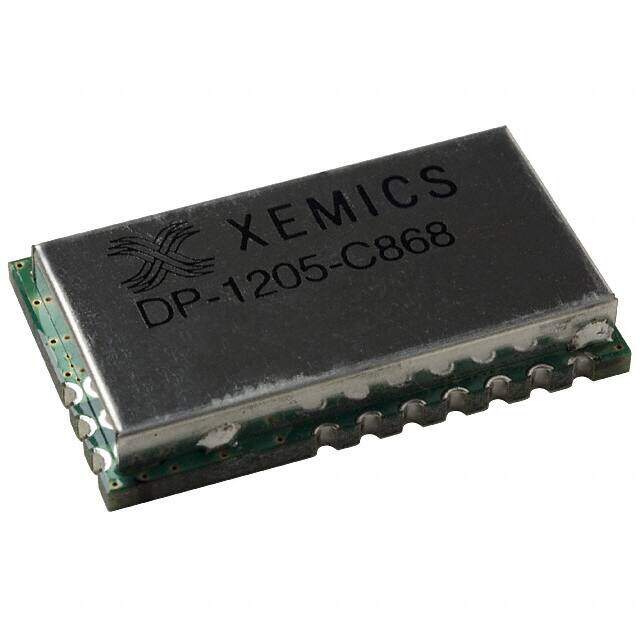

DP1205C868
RoHS
/
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MODULE ISM<1GHZ
PDF
/
Inventory: 4320
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 19
Terminal Finish MATTE TIN
HTS Code 8542.39.00.01
Voltage - Supply 2.4V~3.6V
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 3.3V
Frequency 868MHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number DP1205
Pin Count 19
JESD-30 Code R-XXMA-X19
Qualification Status Not Qualified
Data Rate 152.3kbps
Utilized IC / Part XE1205
Telecom IC Type TELECOM CIRCUIT
Power - Output 15dBm
RF Family/Standard General ISM < 1GHz
Antenna Type Antenna Not Included
Serial Interfaces SPI
Current - Receiving 14mA
Current - Transmitting 33mA~62mA
Sensitivity (dBm) -118 dBm
Dimensions
Length 30.5mm
Width 18.5mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
