GAMMA-868-SO
RoHS
RoHS compliant
RoHS compliantPackage 18-SMD Module
Category RF/IF and RFID / RF Transceiver Modules
Description

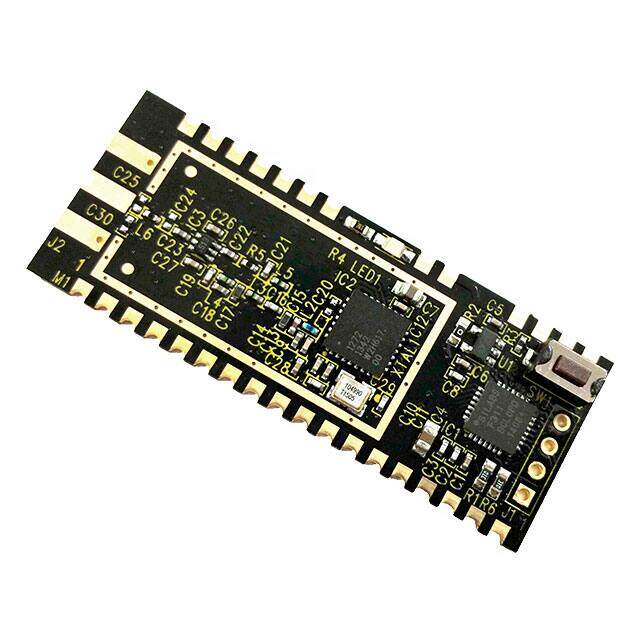

RF SOLUTIONS GAMMA-868-SO LORA TRANSCEIVER, 868MHZ, 9.6KBPS, 16KM
PDF
/
Buying Options
Total Price: USD $68.2
Unit Price: USD $68.201216
≥1 USD $68.201216
≥200 USD $27.213791
≥500 USD $26.303952
≥1000 USD $25.85494
Inventory: 6952
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 18-SMD Module
Technical
Operating Temperature -40°C~85°C
Packaging Bag
Published 2015
Series GAMMA
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Voltage - Supply 2.7V~3.6V
Frequency 868MHz
Interface UART
Max Supply Voltage 3.6V
Min Supply Voltage 2.7V
Nominal Supply Current 155mA
Data Rate 9.6kbps
Protocol LoRa?
Max Frequency 869.5MHz
Power - Output 20dBm
RF Family/Standard General ISM < 1GHz
Antenna Type Antenna Not Included
Sensitivity -137dBm
Serial Interfaces UART
Current - Receiving 23mA
Current - Transmitting 155mA
Modulation OFDM
Sensitivity (dBm) -137 dBm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
