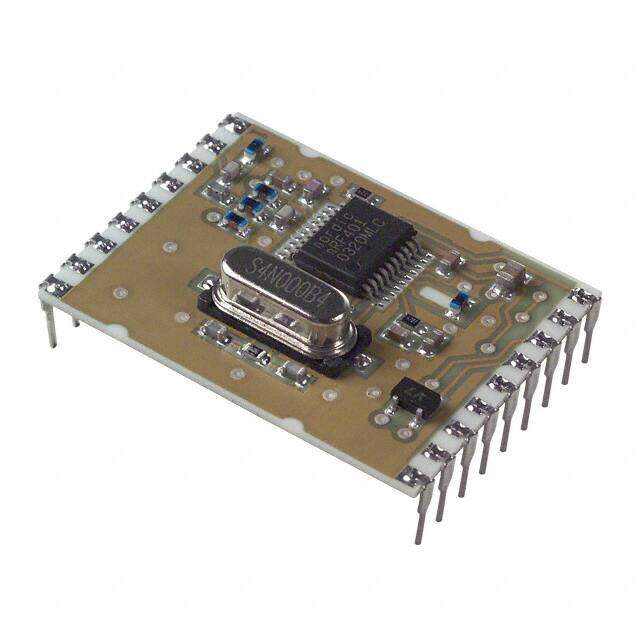

FMRXQ1-433
RoHS
/
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MODULE ISM<1GHZ
PDF
/
Inventory: 8221
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Connector Mount
Package / Case Module
Technical
Operating Temperature -20°C~70°C
Packaging Tube
Published 2004
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Voltage - Supply 2.7V~5.25V
Frequency 433MHz
Nominal Supply Current 8mA
Data Rate 20kBaud
Power - Output 5dBm
RF Family/Standard General ISM < 1GHz
Antenna Type Antenna Not Included
Serial Interfaces UART
Current - Receiving 12mA
Current - Transmitting 26mA
Sensitivity (dBm) -100 dBm
Dimensions
Length 30.5mm
Width 22.9mm
Thickness 7mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
