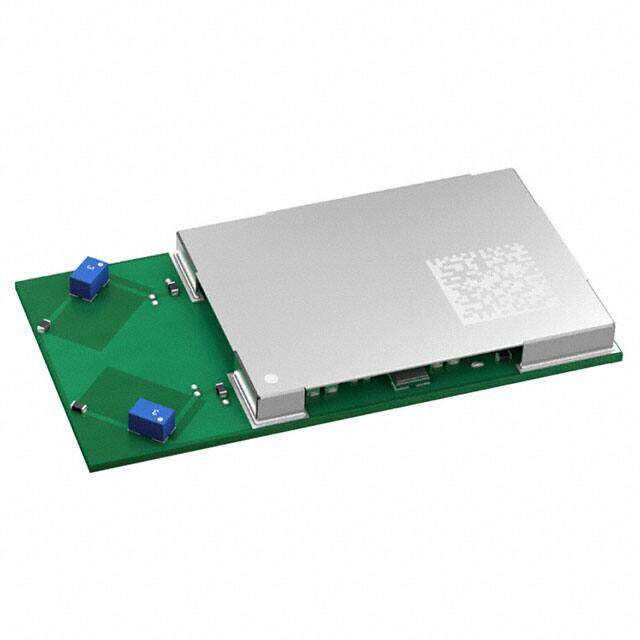

ENW-F9101A1JF image
Favorite
ENW-F9101A1JF image
Favorite
RoHS
RoHS RoHS compliant
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description RF TXRX MOD BLUETOOTH/WIFI CHIP
PDF
/
Inventory: 1501
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 16 Weeks

Physical

Mounting Type Surface Mount
Package / Case Module

Technical

Operating Temperature 0°C~70°C
Packaging Tape & Reel (TR)
Series PAN9055
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Voltage - Supply 3V~3.6V
Frequency 2.4GHz
Data Rate 300Mbps
Utilized IC / Part 88W8797
Protocol 802.11b/g/n, Bluetooth v4.0 Dual Mode
Power - Output 18dBm
RF Family/Standard Bluetooth, WiFi
Antenna Type Integrated, Chip
Sensitivity -98dBm
Serial Interfaces I2S, JTAG, SDIO, UART, USB
Modulation 16QAM, 64QAM, BPSK, CCK, DPSK, DQPSK, DSSS, GFSK, QPSK, OFDM

Compliance

RoHS Status ROHS3 Compliant
