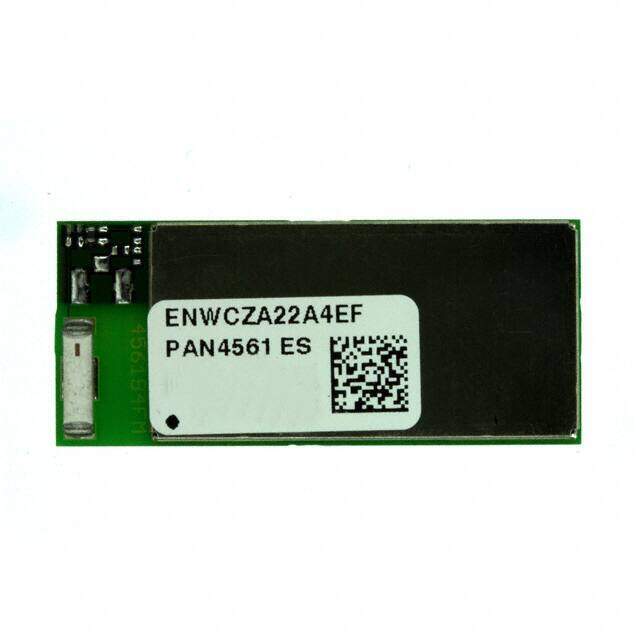

ENW-C9A22A4EF
RoHS
RoHS compliant
RoHS compliantPackage PCB Module
Category RF/IF and RFID / RF Transceiver Modules
Description
Zigbee / 802.15.4 Modules PAN4561 2.4GHz 8bit LNA PA Cer Ant SNAP
PDF
/
Inventory: 4755
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case PCB Module
Number of Pins 62
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2012
Series PAN4561H
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Voltage - Supply 2.7V~3.4V
Depth 15mm
Frequency 2.4GHz
Operating Supply Voltage 3.3V
Interface I2C, UART
Max Supply Voltage 3.4V
Min Supply Voltage 2.7V
Memory Size 60kB Flash 4kB RAM
Data Rate 250kbps
Utilized IC / Part MC13213
Power - Output 20dBm
RF Family/Standard 802.15.4
Antenna Type Integrated, Chip
Sensitivity -102dBm
Serial Interfaces I2C, UART
Current - Receiving 48mA
Current - Transmitting 200mA
Sensitivity (dBm) -102 dBm
Dimensions
Length 35mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
