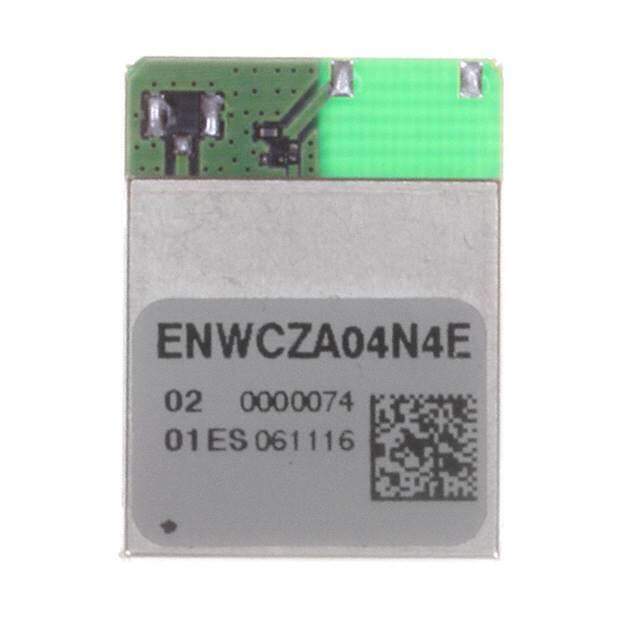

ENW-C9A04N4E
RoHS
RoHS compliant
RoHS compliantPackage PCB Module
Category RF/IF and RFID / RF Transceiver Modules
Description
ZigBee/802.15.4 250Kbps 48-Pin
PDF
/
Inventory: 3781
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Sensitivity (dBm) -97 dBm
Current - Transmitting 41.5mA
Current - Receiving 35.5mA
Serial Interfaces I2C, SPI, UART
Sensitivity -97dBm
Antenna Type Antenna Not Included
RF Family/Standard 802.15.4
Power - Output 3dBm
Utilized IC / Part EM250
Data Rate 250kbps
RAM Size 5kB
Memory Size 128kB Flash 5kB SRAM
Min Supply Voltage 2.1V
Max Supply Voltage 3.6V
Interface I2C, SPI, UART
Number of Channels 16
Operating Supply Voltage 3V
Frequency 2.4GHz
Voltage - Supply 2.1V~3.6V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Discontinued
Series PAN4570
Published 2012
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C
Physical
Number of Pins 48
Package / Case PCB Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
