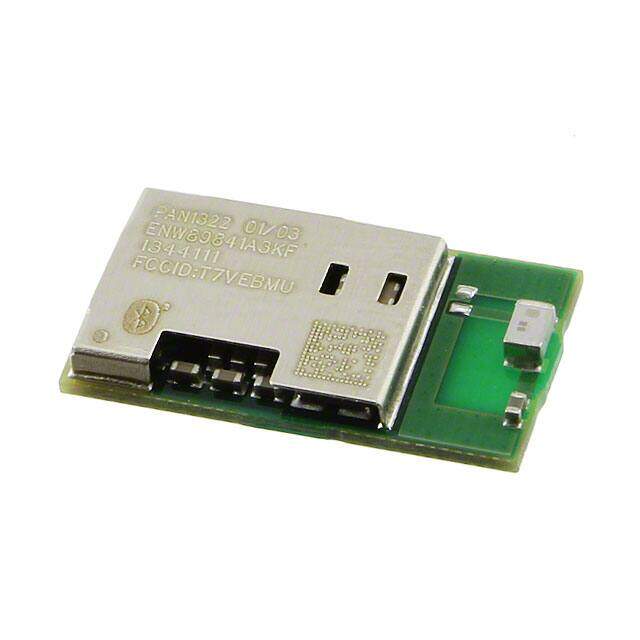

ENW-89841A3KF image
Favorite
ENW-89841A3KF image
Favorite
RoHS
RoHS RoHS compliant
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description RF TXRX MOD BLUETOOTH CHIP ANT
PDF
/
Inventory: 4464
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Technical

Current - Transmitting 40mA
Current - Receiving 37mA
Sensitivity -86dBm
Antenna Type Integrated, Chip
RF Family/Standard Bluetooth
Power - Output 3dBm
Telecom IC Type TELECOM CIRCUIT
Protocol Bluetooth v2.1 + EDR
JESD-30 Code R-XXSS-X
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 2.4GHz
Reach Compliance Code unknown
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Voltage - Supply 2.7V~3.5V
Technology CMOS
HTS Code 8542.39.00.01
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Series PAN1322
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Surface Mount NO
Package / Case Module
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
