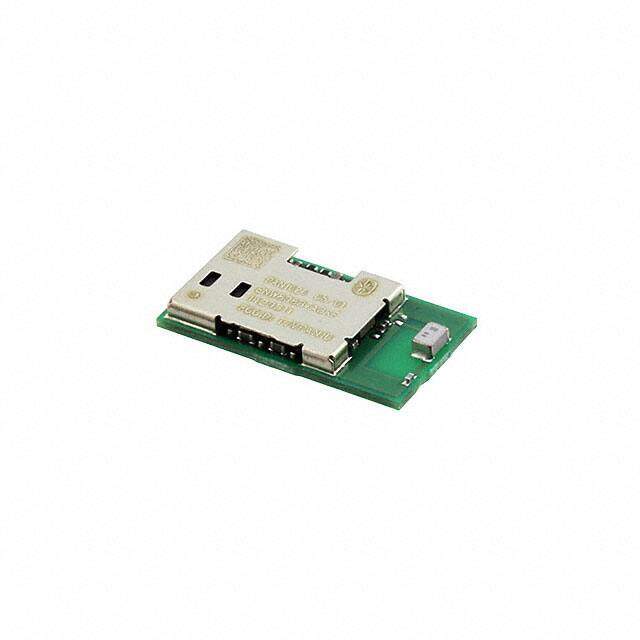

ENW-89837A3KF
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
Bluetooth / 802.15.1 Modules PAN1026 BLE BT SPP DUAL MODE
PDF
/
Buying Options
Total Price: USD $40.27
Unit Price: USD $40.2724
≥1 USD $40.2724
≥10 USD $33.04385
≥100 USD $32.0112
≥500 USD $30.97855
≥1000 USD $29.9459
Inventory: 1304
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 8.7mm
Length 15.6mm
Height 2mm
Technical
Ambient Temperature Range High 85°C
Number of GPIO 14
Sensitivity (dBm) -87 dBm
Serial Interfaces I2C, SPI, UART, USB
Antenna Type Integrated, Chip
RF Family/Standard Bluetooth
Power - Output 4dBm
Telecom IC Type TELECOM CIRCUIT
Protocol Bluetooth v4.0 Dual Mode
Utilized IC / Part TC35661
Data Rate 4.3Mbps
Interface I2C, SPI, UART, USB
Operating Supply Voltage 3.3V
Time@Peak Reflow Temperature-Max (s) 10
Frequency 2.4GHz
Reach Compliance Code unknown
Supply Voltage 1.8V
Number of Functions 1
Peak Reflow Temperature (Cel) 250
Terminal Form NO LEAD
Terminal Position UNSPECIFIED
Voltage - Supply 1.7V~3.6V
HTS Code 8542.39.00.01
Number of Terminations 58
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Not For New Designs
Series PAN1026
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 58
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
