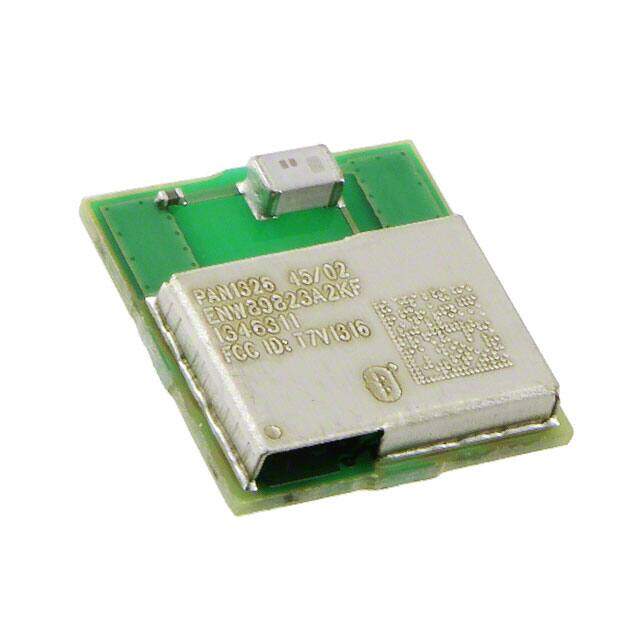

ENW-89823A2KF
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MOD BLUETOOTH CHIP ANT
PDF
/
Buying Options
Total Price: USD $12.65
Unit Price: USD $12.6544
≥1 USD $12.6544
≥10 USD $11.44704
≥100 USD $10.543104
≥500 USD $9.63952
≥1000 USD $9.037037
Inventory: 1197
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 9mm
Length 9.5mm
Height 1.8mm
Technical
Sensitivity (dBm) -93 dBm
Modulation GFSK
Current - Receiving 33mA
Serial Interfaces I2S, UART
Antenna Type Integrated, Chip
RF Family/Standard Bluetooth
Power - Output 10dBm
Telecom IC Type TELECOM CIRCUIT
Protocol Bluetooth v4.0
Utilized IC / Part CC2564
Data Rate 3Mbps
Interface I2C, UART
Time@Peak Reflow Temperature-Max (s) 10
Frequency 2.4GHz
Peak Reflow Temperature (Cel) 250
Voltage - Supply 1.7V~4.8V
HTS Code 8542.39.00.01
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Not For New Designs
Series PAN1326
Published 2012
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C
Physical
Number of Pins 24
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
